 | Python version 2.5 |
| Numerical Python (numpy) |
| Gnuplot program, Python Gnuplot module |
| SciTools |
| For multi-language programming: gcc, g++, g77 |

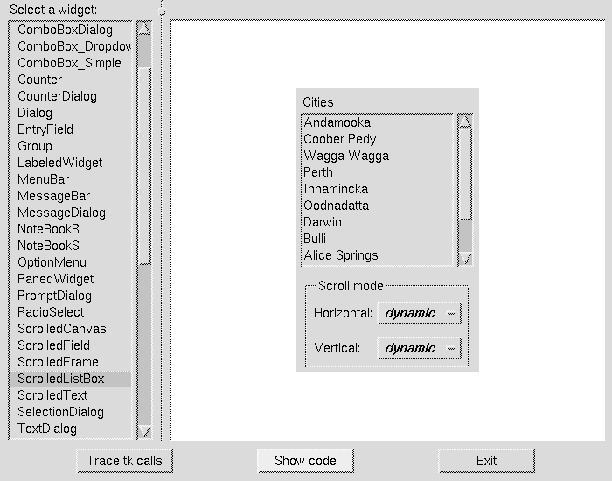

| For GUI programming: Tcl/Tk, Pmw |
| Some Python modules are handy: IPython, Epydoc, ... |
| These slides have a companion book: Scripting in Computational Science, 3rd edition, Texts in Computational Science and Engineering, Springer, 2008 |
| All examples can be downloaded as a tarfile
http://folk.uio.no/hpl/scripting/TCSE3-3rd-examples.tar.gz |
| Software associated with the book and slides: SciTools
http://code.google.com/p/scitools/ |
|
Pack TCSE3-3rd-examples.tar.gz out in a directory and let scripting be an environment variable pointing to the top directory:
tar xvzf TCSE3-3rd-examples.tar.gz export scripting=`pwd`All paths in these slides are given relative to scripting, e.g., src/py/intro/hw.py is reached as $scripting/src/py/intro/hw.py |
| All computer languages intros start with a program that prints "Hello, World!" to the screen |
| Scientific computing extension: read a number, compute its sine value, and print out |
| The script, called hw.py, should be run like this:
python hw.py 3.4or just (Unix) ./hw.py 3.4 |
| Output:
Hello, World! sin(3.4)=-0.255541102027 |
| how to get input from the command line |
| how to call a math function like sin(x) |
| how to work with variables |
| how to print text and numbers |
| File hw.py:
#!/usr/bin/env python
# load system and math module:
import sys, math
# extract the 1st command-line argument:
r = float(sys.argv[1])
s = math.sin(r)
print "Hello, World! sin(" + str(r) + ")=" + str(s)
|
| Make the file executable (on Unix):
chmod a+rx hw.py |
| The first line specifies the interpreter of the script (here the first python program in your path) python hw.py 1.4 # first line is treated as comment ./hw.py 1.4 # first line is used to specify an interpreter |
| Even simple scripts must load modules:
import sys, math |
| Numbers and strings are two different types:
r = sys.argv[1] # r is string s = math.sin(float(r)) # sin expects number, not string r # s becomes a floating-point number |
| Desired output:
Hello, World! sin(3.4)=-0.255541102027 |
| String concatenation:
print "Hello, World! sin(" + str(r) + ")=" + str(s)
|
| printf-like statement:
print "Hello, World! sin(%g)=%g" % (r,s) |
| Variable interpolation:
print "Hello, World! sin(%(r)g)=%(s)g" % vars() |
%d : integer
%5d : integer in a field of width 5 chars
%-5d : integer in a field of width 5 chars,
but adjusted to the left
%05d : integer in a field of width 5 chars,
padded with zeroes from the left
%g : float variable in %f or %g notation
%e : float variable in scientific notation
%11.3e : float variable in scientific notation,
with 3 decimals, field of width 11 chars
%5.1f : float variable in fixed decimal notation,
with one decimal, field of width 5 chars
%.3f : float variable in fixed decimal form,
with three decimals, field of min. width
%s : string
%-20s : string in a field of width 20 chars,
and adjusted to the left
| Single- and double-quoted strings work in the same way
s1 = "some string with a number %g" % r s2 = 'some string with a number %g' % r # = s1 |
| Triple-quoted strings can be multi line with embedded
newlines:
text = """ large portions of a text can be conveniently placed inside triple-quoted strings (newlines are preserved)""" |
| Raw strings, where backslash is backslash:
s3 = r'\(\s+\.\d+\)' # with ordinary string (must quote backslash): s3 = '\\(\\s+\\.\\d+\\)' |
| Make a bookmark for \$scripting/doc.html |
| Follow link to Index to Python Library Reference (complete on-line Python reference) |
| Click on Python keywords, modules etc. |
| Online alternative: pydoc, e.g., pydoc math |
| pydoc lists all classes and functions in a module |
| Alternative: Python in a Nutshell (or Beazley's textbook) |
| Recommendation: use these slides and associated book together with the Python Library Reference, and learn by doing exercises |
| Read (x,y) data from a two-column file |
| Transform y values to f(y) |
| Write (x,f(y)) to a new file |
| How to open, read, write and close files |
| How to write and call a function |
| How to work with arrays (lists) |
| Usage:
./datatrans1.py infilename outfilename |
| Read the two command-line arguments: input and output filenames infilename = sys.argv[1] outfilename = sys.argv[2] |
| Command-line arguments are in sys.argv[1:] |
| sys.argv[0] is the name of the script |
| What if the user fails to provide two command-line arguments? |
| Python aborts execution with an informative error message |
| A good alternative is to handle the error manually inside the program code:
try:
infilename = sys.argv[1]
outfilename = sys.argv[2]
except:
# try block failed,
# we miss two command-line arguments
print 'Usage:', sys.argv[0], 'infile outfile'
sys.exit(1)
This is the common way of dealing with errors in Python,
called exception handling
|
| Open files:
ifile = open( infilename, 'r') # r for reading ofile = open(outfilename, 'w') # w for writing afile = open(appfilename, 'a') # a for appending |
| Read line by line:
for line in ifile:
# process line
|
| Observe: blocks are indented; no braces! |
import math
def myfunc(y):
if y >= 0.0:
return y**5*math.exp(-y)
else:
return 0.0
# alternative way of calling module functions
# (gives more math-like syntax in this example):
from math import *
def myfunc(y):
if y >= 0.0:
return y**5*exp(-y)
else:
return 0.0
| Input file format: two columns with numbers
0.1 1.4397 0.2 4.325 0.5 9.0 |
| Read a line with x and y, transform y, write x and f(y):
for line in ifile:
pair = line.split()
x = float(pair[0]); y = float(pair[1])
fy = myfunc(y) # transform y value
ofile.write('%g %12.5e\n' % (x,fy))
|
| This construction is more flexible and traditional in Python (and a bit strange...):
while 1:
line = ifile.readline() # read a line
if not line: break # end of file: jump out of loop
# process line
i.e., an 'infinite' loop with the termination criterion
inside the loop
|
| Read input file into list of lines:
lines = ifile.readlines() |
| Now the 1st line is lines[0], the 2nd is lines[1], etc. |
| Store x and y data in lists:
# go through each line,
# split line into x and y columns
x = []; y = [] # store data pairs in lists x and y
for line in lines:
xval, yval = line.split()
x.append(float(xval))
y.append(float(yval))
|
| For-loop in Python:
for i in range(start,stop,inc):
...
for j in range(stop):
...
generates
i = start, start+inc, start+2*inc, ..., stop-1 j = 0, 1, 2, ..., stop-1 |
| Loop over (x,y) values:
ofile = open(outfilename, 'w') # open for writing
for i in range(len(x)):
fy = myfunc(y[i]) # transform y value
ofile.write('%g %12.5e\n' % (x[i], fy))
ofile.close()
|
| Method 1: write just the name of the scriptfile:
./datatrans1.py infile outfile # or datatrans1.py infile outfileif . (current working directory) or the directory containing datatrans1.py is in the path |
| Method 2: run an interpreter explicitly:
python datatrans1.py infile outfileUse the first python program found in the path |
| This works on Windows too (method 1 requires the right assoc/ftype bindings for .py files) |
| In method 1, the interpreter to be used is specified in the first line |
| Explicit path to the interpreter:
#!/usr/local/bin/pythonor perhaps your own Python interpreter: #!/home/hpl/projects/scripting/Linux/bin/python |
| Using env to find the first Python interpreter in the path:
#!/usr/bin/env python |
| Yes and no, depending on how you see it |
| Python first compiles the script into bytecode |
| The bytecode is then interpreted |
| No linking with libraries; libraries are imported dynamically when needed |
| It appears as there is no compilation |
| Quick development: just edit the script and run! (no time-consuming compilation and linking) |
| Extensive error checking at run time |
| Everything in Python is an object (number, function, list, file, module, class, socket, ...) |
| Objects are instances of a class -- lots of classes are defined (float, int, list, file, ...) and the programmer can define new classes |
| Variables are names for (or ``pointers'' or ``references'' to) objects:
A = 1 # make an int object with value 1 and name A A = 'Hi!' # make a str object with value 'Hi!' and name A print A[1] # A[1] is a str object 'i', print this object A = [-1,1] # let A refer to a list object with 2 elements A[-1] = 2 # change the list A refers to in-place b = A # let name b refer to the same object as A print b # results in the string '[-1, 2]' |
| Functions are either stand-alone or part of classes:
n = len(A) # len(somelist) is a stand-alone function A.append(4) # append is a list method (function) |
| Easy to introduce intricate bugs?
| ||||
| No, extensive consistency checks at run time replace the need for strong typing and compile-time checks | ||||
| Example: sending a string to the sine function, math.sin('t'), triggers a run-time error (type incompatibility) | ||||
| Example: try to open a non-existing file
./datatrans1.py qqq someoutfile
Traceback (most recent call last):
File "./datatrans1.py", line 12, in ?
ifile = open( infilename, 'r')
IOError:[Errno 2] No such file or directory:'qqq'
|
| x and y in datatrans2.py are lists |
| We can compute with lists element by element (as shown) |
| However: using Numerical Python (NumPy) arrays instead of lists is much more efficient and convenient |
| Numerical Python is an extension of Python: a new fixed-size array type and lots of functions operating on such arrays |
| Import (more on this later...):
from numpy import * x = linspace(0, 1, 1001) # 1001 values between 0 and 1 x = sin(x) # computes sin(x[0]), sin(x[1]) etc. |
| x=sin(x) is 13 times faster than an explicit loop:
for i in range(len(x)):
x[i] = sin(x[i])
because sin(x) invokes an efficient loop in C
|
| A special module loads tabular file data into NumPy arrays:
import scitools.filetable f = open(infilename, 'r') x, y = scitools.filetable.read_columns(f) f.close() |
| Now we can compute with the NumPy arrays x and y:
x = 10*x y = 2*y + 0.1*sin(x) |
| We can easily write x and y back to a file:
f = open(outfilename, 'w') scitools.filetable.write_columns(f, x, y) f.close() |
| Multi-dimensional arrays can be constructed:
x = zeros(n) # array with indices 0,1,...,n-1 x = zeros((m,n)) # two-dimensional array x[i,j] = 1.0 # indexing x = zeros((p,q,r)) # three-dimensional array x[i,j,k] = -2.1 x = sin(x)*cos(x) |
| We can plot one-dimensional arrays:
from scitools.easyviz import * # plotting x = linspace(0, 2, 21) y = x + sin(10*x) plot(x, y) |
| NumPy has lots of math functions and operations |
| SciPy is a comprehensive extension of NumPy |
| NumPy + SciPy is a kind of Matlab replacement for many people |
| Python statements can be run interactively in a Python shell |
| The ``best'' shell is called IPython |
| Sample session with IPython:
Unix/DOS> ipython ... In [1]:3*4-1 Out[1]:11 In [2]:from math import * In [3]:x = 1.2 In [4]:y = sin(x) In [5]:x Out[5]:1.2 In [6]:y Out[6]:0.93203908596722629 |
| Up- and down-arrays: go through command history |
| Emacs key bindings for editing previous commands |
| The underscore variable holds the last output
In [6]:y Out[6]:0.93203908596722629 In [7]:_ + 1 Out[7]:1.93203908596722629 |
| IPython supports TAB completion: write a part of a command or
name (variable, function, module), hit the TAB key, and IPython will
complete the word or show different alternatives:
In [1]: import math In [2]: math.<TABKEY> math.__class__ math.__str__ math.frexp math.__delattr__ math.acos math.hypot math.__dict__ math.asin math.ldexp ...or In [2]: my_variable_with_a_very_long_name = True In [3]: my<TABKEY> In [3]: my_variable_with_a_very_long_nameYou can increase your typing speed with TAB completion! |
In [1]:f = open('datafile', 'r')
IOError: [Errno 2] No such file or directory: 'datafile'
In [2]:f = open('.datatrans_infile', 'r')
In [3]:from scitools.filetable import read_columns
In [4]:x, y = read_columns(f)
In [5]:x
Out[5]:array([ 0.1, 0.2, 0.3, 0.4])
In [6]:y
Out[6]:array([ 1.1 , 1.8 , 2.22222, 1.8 ])
| Scripts can be run from IPython:
In [1]:run scriptfile arg1 arg2 ...e.g., In [1]:run datatrans2.py .datatrans_infile tmp1 |
| IPython is integrated with Python's pdb debugger |
| pdb can be automatically invoked when an exception occurs:
In [29]:%pdb on # invoke pdb automatically In [30]:run datatrans2.py infile tmp2 |
| This happens when the infile name is wrong:
/home/work/scripting/src/py/intro/datatrans2.py
7 print "Usage:",sys.argv[0], "infile outfile"; sys.exit(1)
8
----> 9 ifile = open(infilename, 'r') # open file for reading
10 lines = ifile.readlines() # read file into list of lines
11 ifile.close()
IOError: [Errno 2] No such file or directory: 'infile'
> /home/work/scripting/src/py/intro/datatrans2.py(9)?()
-> ifile = open(infilename, 'r') # open file for reading
(Pdb) print infilename
infile
|
| Pure Python: 4s |
| Pure Perl: 3s |
| Pure Tcl: 11s |
| Pure C (fscanf/fprintf): 1s |
| Pure C++ (iostream): 3.6s |
| Pure C++ (buffered streams): 2.5s |
| Numerical Python modules: 2.2s (!) |
| Simple, classical Unix shell scripts are widely used to replace sequences of manual steps in a terminal window | ||||
| Such scripts are crucial for scientific reliability and human efficiency! | ||||
| Shell script newbie? Wake up and adapt this example to your projects! | ||||

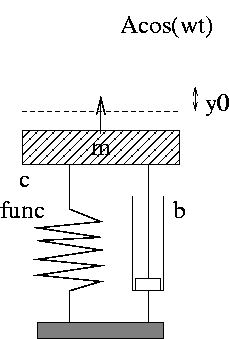

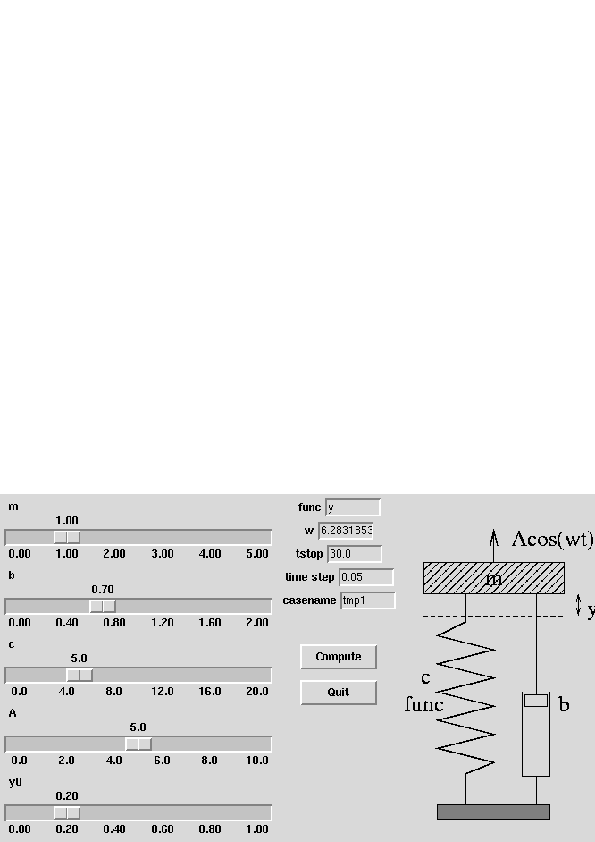

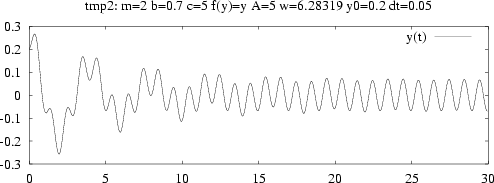

| Typical situation in computer simulation:
| ||||
| Programs are supposed to run from the command line, with input from files or from command-line arguments | ||||
| We want to automate the manual steps by a Python script |
| Parsing command-line options:
somescript -option1 value1 -option2 value2 |
| Removing and creating directories |
| Writing data to file |
| Running stand-alone programs (applications) |
Code: oscillator (written in Fortran 77)
| Input: m, b, c, and so on read from standard input |
| How to run the code:
oscillator < filewhere file can be 3.0 0.04 1.0 ... i.e., values of m, b, c, etc. -- in the right order! |
| The resulting time series y(t) is stored in a file sim.dat with t and y(t) in the 1st and 2nd column, respectively |
| Commands:
set title 'case: m=3 b=0.7 c=1 f(y)=y A=5 ...'; # screen plot: (x,y) data are in the file sim.dat plot 'sim.dat' title 'y(t)' with lines; # hardcopies: set size ratio 0.3 1.5, 1.0; set term postscript eps mono dashed 'Times-Roman' 28; set output 'case.ps'; plot 'sim.dat' title 'y(t)' with lines; # make a plot in PNG format as well: set term png small; set output 'case.png'; plot 'sim.dat' title 'y(t)' with lines; |
| Commands can be given interactively or put in a file |
| Change physical or numerical parameters by editing the simulator's input file |
| Run simulator:
oscillator < inputfile |
| Edit plot commands in the file case.gp |
| Make plot:
gnuplot -persist -geometry 800x200 case.gp |
| Plot annotations in case.gp must be consistent with inputfile |
| Let's automate! |
| You can easily adapt this example to your own work! |
| Usage:
./simviz1.py -m 3.2 -b 0.9 -dt 0.01 -case run1Sensible default values for all options |
| Put simulation and plot files in a subdirectory (specified by -case run1) |
| Set default values of m, b, c etc. |
| Parse command-line options (-m, -b etc.) and assign new values to m, b, c etc. |
| Create and move to subdirectory |
| Write input file for the simulator |
| Run simulator |
| Write Gnuplot commands in a file |
| Run Gnuplot |
| Set default values of the script's input parameters:
m = 1.0; b = 0.7; c = 5.0; func = 'y'; A = 5.0; w = 2*math.pi; y0 = 0.2; tstop = 30.0; dt = 0.05; case = 'tmp1'; screenplot = 1 |
| Examine command-line options in sys.argv:
# read variables from the command line, one by one:
while len(sys.argv) >= 2:
option = sys.argv[1]; del sys.argv[1]
if option == '-m':
m = float(sys.argv[1]); del sys.argv[1]
elif option == '-b':
b = float(sys.argv[1]); del sys.argv[1]
...
Note: sys.argv[1] is text, but we may want a float for numerical operations
|
| Python offers two modules for command-line argument parsing: getopt and optparse |
| These accept short options (-m) and long options (--mass) |
| getopt examines the command line and returns pairs of options and values ((--mass, 2.3)) |
| optparse is a bit more comprehensive to use and makes the command-line options available as attributes in an object |
| In this introductory example we rely on manual parsing since this exemplifies basic Python programming |
| Python has a rich cross-platform operating system (OS) interface |
| Skip Unix- or DOS-specific commands; do all OS operations in Python! |
| Safe creation of a subdirectory:
dir = case # subdirectory name
import os, shutil
if os.path.isdir(dir): # does dir exist?
shutil.rmtree(dir) # yes, remove old files
os.mkdir(dir) # make dir directory
os.chdir(dir) # move to dir
|
f = open('%s.i' % case, 'w')
f.write("""
%(m)g
%(b)g
%(c)g
%(func)s
%(A)g
%(w)g
%(y0)g
%(tstop)g
%(dt)g
""" % vars())
f.close()
Note: triple-quoted string for multi-line output
| Stand-alone programs can be run as
failure = os.system(command) # or import commands failure, output = commands.getstatusoutput(command) |
| output contains the output of command that in case of os.system will be printed in the terminal window |
| failure is 0 (false) for a successful run of command |
| Our use:
cmd = 'oscillator < %s.i' % case # command to run
import commands
failure, output = commands.getstatusoutput(cmd)
if failure:
print 'running the oscillator code failed'
print output
sys.exit(1)
|
| Make Gnuplot script:
f = open(case + '.gnuplot', 'w')
f.write("""
set title '%s: m=%g b=%g c=%g f(y)=%s A=%g ...';
...
...
""" % (case,m,b,c,func,A,w,y0,dt,case,case))
...
f.close()
|
| Run Gnuplot:
cmd = 'gnuplot -geometry 800x200 -persist ' \
+ case + '.gnuplot'
failure, output = commands.getstatusoutput(cmd)
if failure:
print 'running gnuplot failed'; print output; sys.exit(1)
|
| Our simviz1.py script is traditionally written as a Unix shell script | ||||||
| What are the advantages of using Python here?
|
| It is easy to replace Gnuplot by another plotting program |
| Matlab, for instance:
f = open(case + '.m', 'w') # write to Matlab M-file
# (the character % must be written as %% in printf-like strings)
f.write("""
load sim.dat %% read sim.dat into sim matrix
plot(sim(:,1),sim(:,2)) %% plot 1st column as x, 2nd as y
legend('y(t)')
title('%s: m=%g b=%g c=%g f(y)=%s A=%g w=%g y0=%g dt=%g')
outfile = '%s.ps'; print('-dps', outfile) %% ps BW plot
outfile = '%s.png'; print('-dpng', outfile) %% png color plot
""" % (case,m,b,c,func,A,w,y0,dt,case,case))
if screenplot: f.write('pause(30)\n')
f.write('exit\n'); f.close()
if screenplot:
cmd = 'matlab -nodesktop -r ' + case + ' > /dev/null &'
else:
cmd = 'matlab -nodisplay -nojvm -r ' + case
failure, output = commands.getstatusoutput(cmd)
|
| Suppose we want to run a series of experiments with different m values |
| Put a script on top of simviz1.py,
./loop4simviz1.py m_min m_max dm \
[options as for simviz1.py]
with a loop over m, which calls simviz1.py inside the loop
|
| Each experiment is archived in a separate directory |
| That is, loop4simviz1.py controls the -m and -case options to simviz1.py |
| The first three arguments define the m values:
try:
m_min = float(sys.argv[1])
m_max = float(sys.argv[2])
dm = float(sys.argv[3])
except:
print 'Usage:',sys.argv[0],\
'm_min m_max m_increment [ simviz1.py options ]'
sys.exit(1)
|
| Pass the rest of the arguments, sys.argv[4:], to simviz1.py |
| Problem: sys.argv[4:] is a list, we need a string
['-b','5','-c','1.1'] -> '-b 5 -c 1.1' |
| ' '.join(list) can make a string out of the list list, with a blank between
each item
simviz1_options = ' '.join(sys.argv[4:]) |
| Example:
./loop4simviz1.py 0.5 2 0.5 -b 2.1 -A 3.6results in the same as m_min = 0.5 m_max = 2.0 dm = 0.5 simviz1_options = '-b 2.1 -A 3.6' |
| Cannot use
for m in range(m_min, m_max, dm):because range works with integers only |
| A while-loop is appropriate:
m = m_min
while m <= m_max:
case = 'tmp_m_%g' % m
s = 'python simviz1.py %s -m %g -case %s' % \
(simviz1_options, m, case)
failure, output = commands.getstatusoutput(s)
m += dm
(Note: our -m and -case will override any -m or
-case option provided by the user)
|
| Many runs of simviz1.py can be automated, many results are generated, and we need a way to browse the results |
| Idea: collect all plots in a common HTML file and let the script automate the writing of the HTML file
html = open('tmp_mruns.html', 'w')
html.write('<HTML><BODY BGCOLOR="white">\n')
m = m_min
while m <= m_max:
case = 'tmp_m_%g' % m
cmd = 'python simviz1.py %s -m %g -case %s' % \
(simviz1_options, m, case)
failure, output = commands.getstatusoutput(cmd)
html.write('<H1>m=%g</H1> <IMG SRC="%s">\n' \
% (m,os.path.join(case,case+'.png')))
m += dm
html.write('</BODY></HTML>\n')
|
| Only 4 additional statements! |
| When we vary m, wouldn't it be nice to see progressive plots put together in a movie? |
| Can combine the PNG files together in an animated GIF file:
convert -delay 50 -loop 1000 -crop 0x0 \
plot1.png plot2.png plot3.png plot4.png ... movie.gif
animate movie.gif # or display movie.gif
(convert and animate are ImageMagick tools)
|
| Collect all PNG filenames in a list and join the list items to form the convert arguments |
| Run the convert program |
| Enable loops over an arbitrary parameter (not only m)
'-m %g' % m
# is replaced with
'-%s %s' % (str(prm_name), str(prm_value))
# prm_value plays the role of the m variable
# prm_name ('m', 'b', 'c', ...) is read as input
|
| New feature: keep the range of the y axis fixed (for movie) |
| Files:
simviz1.py : run simulation and visualization
simviz2.py : additional option for yaxis scale
loop4simviz1.py : m loop calling simviz1.py
loop4simviz2.py : loop over any parameter in
simviz2.py and make movie
|
| Study the impact of increasing the mass:
./loop4simviz2.py m 0.1 6.1 0.5 -yaxis -0.5 0.5 -noscreenplot |
| Study the impact of a nonlinear spring:
./loop4simviz2.py c 5 30 2 -yaxis -0.7 0.7 -b 0.5 \
-func siny -noscreenplot
|
| Study the impact of increasing the damping:
./loop4simviz2.py b 0 2 0.25 -yaxis -0.5 0.5 -A 4 |
| Reports:
tmp_c.gif # animated GIF (movie) animate tmp_c.gif tmp_c_runs.html # browsable HTML document |
| All experiments are archived in a directory with a filename reflecting the varying parameter:
tmp_m_2.1 tmp_b_0 tmp_c_29 |
| All generated files/directories start with tmp so it is easy to clean up hundreds of experiments |
| Try the listed loop4simviz2.py commands!! |
| Make a summary report with the equation, a picture of the system, the command-line arguments, and a movie of the solution |
| Make a link to a detailed report with plots of all the individual experiments |
| Demo:
./loop4simviz2_2html.py m 0.1 6.1 0.5 -yaxis -0.5 0.5 \ -noscreenplot ls -d tmp_* firefox tmp_m_summary.html |
| Archiving of experiments and having a system for uniquely relating input data to visualizations or result files are fundamental for reliable scientific investigations |
| The experiments can easily be reproduced |
| New (large) sets of experiments can be generated |
| All these items contribute to increased quality and reliability of computer experiments |
| Input file with time series data:
some comment line
1.5
measurements model1 model2
0.0 0.1 1.0
0.1 0.1 0.188
0.2 0.2 0.25
Contents: comment line, time step, headings, time series data
|
| Goal: split file into two-column files, one for each time series |
| Script: interpret input file, split text, extract data and write files |
| The model1.dat file, arising from column no 2,
becomes
0 0.1 1.5 0.1 3 0.2 |
| The time step parameter, here 1.5, is used to generate the first column |
| Read inputfile name (1st command-line arg.) | ||||
| Open input file | ||||
| Read and skip the 1st (comment) line | ||||
| Extract time step from the 2nd line | ||||
| Read time series names from the 3rd line | ||||
| Make a list of file objects, one for each time series | ||||
| Read the rest of the file, line by line:
|
| Reading and writing files |
| Sublists |
| List of file objects |
| Dictionaries |
| Arrays of numbers |
| List comprehension |
| Refactoring a flat script as functions in a module |
| Open file and read comment line:
infilename = sys.argv[1] ifile = open(infilename, 'r') # open for reading line = ifile.readline() |
| Read time step from the next line:
dt = float(ifile.readline()) |
| Read next line containing the curvenames:
ynames = ifile.readline().split() |
|
Make a list of file objects for output of each time series:
outfiles = []
for name in ynames:
outfiles.append(open(name + '.dat', 'w'))
|
|
Read each line, split into y values, write to output files:
t = 0.0 # t value
# read the rest of the file line by line:
while 1:
line = ifile.readline()
if not line: break
yvalues = line.split()
# skip blank lines:
if len(yvalues) == 0: continue
for i in range(len(outfiles)):
outfiles[i].write('%12g %12.5e\n' % \
(t, float(yvalues[i])))
t += dt
for file in outfiles:
file.close()
|
| Dictionary = array with a text as index |
| Also called hash or associative array in other languages |
| Can store 'anything':
prm['damping'] = 0.2 # number
def x3(x):
return x*x*x
prm['stiffness'] = x3 # function object
prm['model1'] = [1.2, 1.5, 0.1] # list object
|
| The text index is called key |
|
Could store the time series in memory as a dictionary of lists; the list items are the y values and the y names are the keys
y = {} # declare empty dictionary
# ynames: names of y curves
for name in ynames:
y[name] = [] # for each key, make empty list
lines = ifile.readlines() # list of all lines
...
for line in lines[3:]:
yvalues = [float(x) for x in line.split()]
i = 0 # counter for yvalues
for name in ynames:
y[name].append(yvalues[i]); i += 1
|
| Specifying a sublist, e.g., the 4th line until the last line: lines[3:]
Transforming all words in a line to floats:
yvalues = [float(x) for x in line.split()]
# same as
numbers = line.split()
yvalues = []
for s in numbers:
yvalues.append(float(s))
|
| The input file
some comment line
1.5
measurements model1 model2
0.0 0.1 1.0
0.1 0.1 0.188
0.2 0.2 0.25
results in the following y dictionary:
'measurements': [0.0, 0.1, 0.2], 'model1': [0.1, 0.1, 0.2], 'model2': [1.0, 0.188, 0.25](this output is plain print: print y) |
| Fortran/C programmers tend to think of indices as integers |
| Scripters make heavy use of dictionaries and text-type indices (keys) |
| Python dictionaries can use (almost) any object as key (!) |
| A dictionary is also often called hash (e.g. in Perl) or associative array |
| Examples will demonstrate their use |
| The previous script is ``flat'' (start at top, run to bottom) | ||||||
| Parts of it may be reusable | ||||||
| We may like to load data from file, operate on data, and then dump data | ||||||
| Let's refactor the script:
|
def load_data(filename):
f = open(filename, 'r'); lines = f.readlines(); f.close()
dt = float(lines[1])
ynames = lines[2].split()
y = {}
for name in ynames: # make y a dictionary of (empty) lists
y[name] = []
for line in lines[3:]:
yvalues = [float(yi) for yi in line.split()]
if len(yvalues) == 0: continue # skip blank lines
for name, value in zip(ynames, yvalues):
y[name].append(value)
return y, dt
| Note: the function returns two (!) values; a dictionary of lists, plus a float |
| It is common that output data from a Python function are returned, and multiple data structures can be returned (actually packed as a tuple, a kind of ``constant list'') |
| Here is how the function is called:
y, dt = load_data('somedatafile.dat')
print y
Output from print y:
>>> y
{'tmp-model2': [1.0, 0.188, 0.25],
'tmp-model1': [0.10000000000000001, 0.10000000000000001,
0.20000000000000001],
'tmp-measurements': [0.0, 0.10000000000000001,
0.20000000000000001]}
|
| C/C++/Java/Fortran-like iteration over two arrays/lists:
for i in range(len(list)):
e1 = list1[i]; e2 = list2[i]
# work with e1 and e2
|
| Pythonic version:
for e1, e2 in zip(list1, list2):
# work with element e1 from list1 and e2 from list2
For example,
for name, value in zip(ynames, yvalues):
y[name].append(value)
|
def dump_data(y, dt):
# write out 2-column files with t and y[name] for each name:
for name in y.keys():
ofile = open(name+'.dat', 'w')
for k in range(len(y[name])):
ofile.write('%12g %12.5e\n' % (k*dt, y[name][k]))
ofile.close()
| Our goal is to reuse load_data and dump_data, possibly with some operations on y in between:
from convert3 import load_data, dump_data
y, timestep = load_data('.convert_infile1')
from math import fabs
for name in y: # run through keys in y
maxabsy = max([fabs(yval) for yval in y[name]])
print 'max abs(y[%s](t)) = %g' % (name, maxabsy)
dump_data(y, timestep)
|
| Then we need to make a module convert3! |
| Collect the functions in the module in a file, here the file is called convert3.py |
| We have then made a module convert3 |
| The usage is as exemplified on the previous slide |
| The scripts convert1.py and convert2.py load and dump data - this functionality can be reproduced by an application script using convert3 |
| The application script can be included in the module:
if __name__ == '__main__':
import sys
try:
infilename = sys.argv[1]
except:
usage = 'Usage: %s infile' % sys.argv[0]
print usage; sys.exit(1)
y, dt = load_data(infilename)
dump_data(y, dt)
|
| If the module file is run as a script, the if test is true and the application script is run |
| If the module is imported in a script, the if test is false and no statements are executed |
| As script:
unix> ./convert3.py someinputfile.dat |
| As module:
import convert3
y, dt = convert3.load_data('someinputfile.dat')
# do more with y?
dump_data(y, dt)
|
| The application script at the end also serves as an example on how to use the module |
| Construct an example on the functionality of the script, if that is not included in the problem description |
| Write very high-level pseudo code with words |
| Scan known examples for constructions and functionality that can come into use |
| Look up man pages, reference manuals, FAQs, or textbooks for functionality you have minor familiarity with, or to clarify syntax details |
| Search the Internet if the documentation from the latter point does not provide sufficient answers |
| Exercise: Write a function myjoin that concatenates a list of strings to a single string, with a specified delimiter between the list elements. That is, myjoin is supposed to be an implementation of a string's join method in terms of basic string operations. |
| Functionality:
s = myjoin(['s1', 's2', 's3'], '*') # s becomes 's1*s2*s3' |
| Pseudo code:
function myjoin(list, delimiter)
joined = first element in list
for element in rest of list:
concatenate joined, delimiter and element
return joined
|
| Known examples: string concatenation (+ operator) from hw.py, list indexing (list[0]) from datatrans1.py, sublist extraction (list[1:]) from convert1.py, function construction from datatrans1.py |
def myjoin(list, delimiter):
joined = list[0]
for element in list[1:]:
joined += delimiter + element
return joined
That's it!
| Use comments to explain ideas |
| Use descriptive variable names to reduce the need for more comments |
| Find generic solutions (unless the code size explodes) |
| Strive at compact code, but not too compact |
| Always construct a demonstrating running example and include in it
the source code file inside triple-quoted strings:
""" unix> python hw.py 3.1459 Hello, World! sin(3.1459)=-0.00430733309102 """ |
| Invoke the Python interpreter and run import this |
| Here is a suitable command for printing exercises:
Unix> a2ps --line-numbers=1 -4 -o outputfile.ps *.pyThis prints all *.py files, with 4 (because of -4) pages per sheet |
| See man a2ps for more info about this command |
| Efficient array computing in Python |
| Creating arrays |
| Indexing/slicing arrays |
| Random numbers |
| Linear algebra |
| Plotting |
| Ch. 4 in the course book |
| www.scipy.org |
| The NumPy manual |
| The SciPy tutorial |
| NumPy enables efficient numerical computing in Python | ||||||
| NumPy is a package of modules, which offers efficient arrays (contiguous storage) with associated array operations coded in C or Fortran | ||||||
| There are three implementations of Numerical Python
| ||||||
| We recommend to use numpy (by Travis Oliphant)
from numpy import * |
x = linspace(0.0, 1.0, n) # coordinates
y_line = -2*x + 3
y = y_line + random.normal(0, 0.25, n) # line with noise

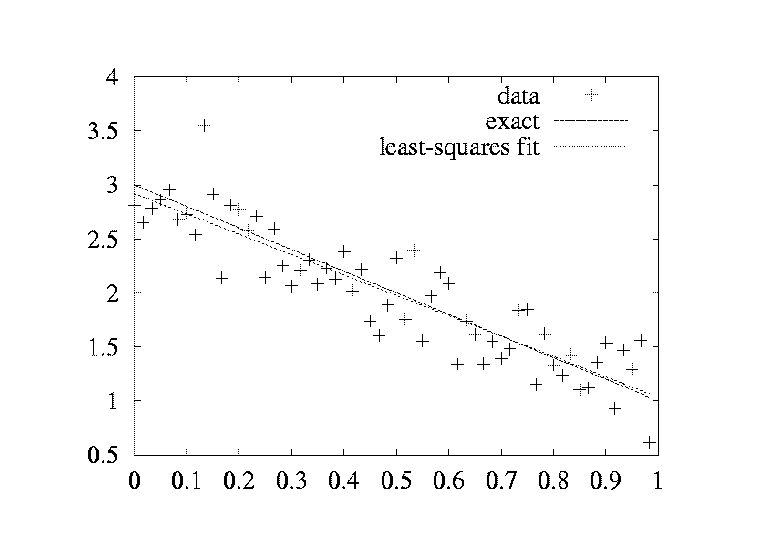

# goal: fit a line to the data points x, y
# create and solve least squares system:
A = array([x, ones(n)])
A = A.transpose()
result = linalg.lstsq(A, y)
# result is a 4-tuple, the solution (a,b) is the 1st entry:
a, b = result[0]
plot(x, y, 'o', # data points w/noise
x, y_line, 'r', # original line
x, a*x + b, 'b') # fitted lines
legend('data points', 'original line', 'fitted line')
hardcopy('myplot.png')
>>> from numpy import * >>> n = 4 >>> a = zeros(n) # one-dim. array of length n >>> print a [ 0. 0. 0. 0.] >>> a array([ 0., 0., 0., 0.]) >>> p = q = 2 >>> a = zeros((p,q,3)) # p*q*3 three-dim. array >>> print a [[[ 0. 0. 0.] [ 0. 0. 0.]] [[ 0. 0. 0.] [ 0. 0. 0.]]] >>> a.shape # a's dimension (2, 2, 3)
>>> a = zeros(3)
>>> print a.dtype # a's data type
float64
>>> a = zeros(3, int)
>>> print a
[0 0 0]
>>> print a.dtype
int32
>>> a = zeros(3, float32) # single precision
>>> print a
[ 0. 0. 0.]
>>> print a.dtype
float32
>>> a = zeros(3, complex)
>>> a
array([ 0.+0.j, 0.+0.j, 0.+0.j])
>>> a.dtype
dtype('complex128')
>>> given an array a, make a new array of same dimension
>>> and data type:
>>> x = zeros(a.shape, a.dtype)
| linspace(a, b, n) generates n uniformly spaced
coordinates, starting with a and ending with b
>>> x = linspace(-5, 5, 11) >>> print x [-5. -4. -3. -2. -1. 0. 1. 2. 3. 4. 5.] |
| A special compact syntax is also available:
>>> a = r_[-5:5:11j] # same as linspace(-5, 5, 11) >>> print a [-5. -4. -3. -2. -1. 0. 1. 2. 3. 4. 5.] |
| arange works like range (xrange)
>>> x = arange(-5, 5, 1, float) >>> print x # upper limit 5 is not included!! [-5. -4. -3. -2. -1. 0. 1. 2. 3. 4.] |
| arange's upper limit may or may not be included (due to round-off errors) |
| Better to use a safer method: seq(start, stop, increment)
>>> from scitools.numpyutils import seq >>> x = seq(-5, 5, 1) >>> print x # upper limit always included [-5. -4. -3. -2. -1. 0. 1. 2. 3. 4. 5.] |
array(list, [datatype]) generates an array from a list:
>>> pl = [0, 1.2, 4, -9.1, 5, 8] >>> a = array(pl) | |
| The array elements are of the simplest possible type:
>>> z = array([1, 2, 3]) >>> print z # array of integers [1 2 3] >>> z = array([1, 2, 3], float) >>> print z [ 1. 2. 3.] |
| A two-dim. array from two one-dim. lists:
>>> x = [0, 0.5, 1]; y = [-6.1, -2, 1.2] # Python lists >>> a = array([x, y]) # form array with x and y as rows |
| From array to list: alist = a.tolist() |
| Given an object a,
a = asarray(a)converts a to a NumPy array (if possible/necessary) |

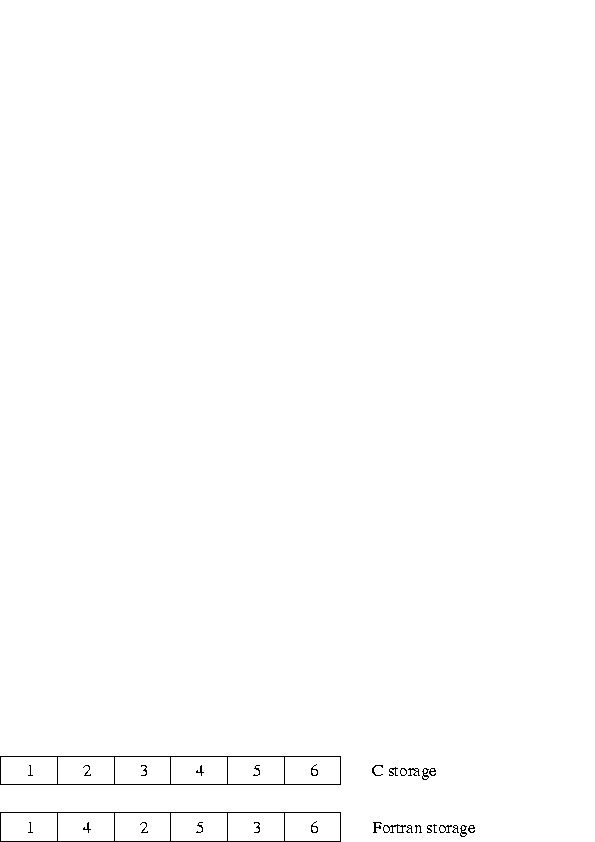

| Arrays can be ordered as in C (default) or Fortran:
a = asarray(a, order='Fortran') isfortran(a) # returns True if a's order is Fortran |
| Use asarray to, e.g., allow flexible arguments in functions:
def myfunc(some_sequence):
a = asarray(some_sequence)
return 3*a - 5
myfunc([1,2,3]) # list argument
myfunc((-1,1)) # tuple argument
myfunc(zeros(10)) # array argument
myfunc(-4.5) # float argument
myfunc(6) # int argument
|
>>> a = array([0, 1.2, 4, -9.1, 5, 8]) >>> a.shape = (2,3) # turn a into a 2x3 matrix >>> print a [[ 0. 1.2 4. ] [-9.1 5. 8. ]] >>> a.size 6 >>> a.shape = (a.size,) # turn a into a vector of length 6 again >>> a.shape (6,) >>> print a [ 0. 1.2 4. -9.1 5. 8. ] >>> a = a.reshape(2,3) # same effect as setting a.shape >>> a.shape (2, 3)
>>> def myfunc(i, j):
... return (i+1)*(j+4-i)
...
>>> # make 3x6 array where a[i,j] = myfunc(i,j):
>>> a = fromfunction(myfunc, (3,6))
>>> a
array([[ 4., 5., 6., 7., 8., 9.],
[ 6., 8., 10., 12., 14., 16.],
[ 6., 9., 12., 15., 18., 21.]])
a = linspace(-1, 1, 6) a[2:4] = -1 # set a[2] and a[3] equal to -1 a[-1] = a[0] # set last element equal to first one a[:] = 0 # set all elements of a equal to 0 a.fill(0) # set all elements of a equal to 0 a.shape = (2,3) # turn a into a 2x3 matrix print a[0,1] # print element (0,1) a[i,j] = 10 # assignment to element (i,j) a[i][j] = 10 # equivalent syntax (slower) print a[:,k] # print column with index k print a[1,:] # print second row a[:,:] = 0 # set all elements of a equal to 0
>>> a = linspace(0, 29, 30)
>>> a.shape = (5,6)
>>> a
array([[ 0., 1., 2., 3., 4., 5.,]
[ 6., 7., 8., 9., 10., 11.,]
[ 12., 13., 14., 15., 16., 17.,]
[ 18., 19., 20., 21., 22., 23.,]
[ 24., 25., 26., 27., 28., 29.,]])
>>> a[1:3,:-1:2] # a[i,j] for i=1,2 and j=0,2,4
array([[ 6., 8., 10.],
[ 12., 14., 16.]])
>>> a[::3,2:-1:2] # a[i,j] for i=0,3 and j=2,4
array([[ 2., 4.],
[ 20., 22.]])
>>> i = slice(None, None, 3); j = slice(2, -1, 2)
>>> a[i,j]
array([[ 2., 4.],
[ 20., 22.]])
| With a as list, a[:] makes a copy of the data |
| With a as array, a[:] is a reference to the data
>>> b = a[1,:] # extract 2nd row of a >>> print a[1,1] 12.0 >>> b[1] = 2 >>> print a[1,1] 2.0 # change in b is reflected in a! |
| Take a copy to avoid referencing via slices:
>>> b = a[1,:].copy() >>> print a[1,1] 12.0 >>> b[1] = 2 # b and a are two different arrays now >>> print a[1,1] 12.0 # a is not affected by change in b |
| Standard loop over each element:
for i in xrange(a.shape[0]):
for j in xrange(a.shape[1]):
a[i,j] = (i+1)*(j+1)*(j+2)
print 'a[%d,%d]=%g ' % (i,j,a[i,j]),
print # newline after each row
|
| A standard for loop iterates over the first index:
>>> print a [[ 2. 6. 12.] [ 4. 12. 24.]] >>> for e in a: ... print e ... [ 2. 6. 12.] [ 4. 12. 24.] |
| View array as one-dimensional and iterate over all elements:
for e in a.ravel():
print e
Use ravel() only when reading elements, for assigning it is better to use shape or reshape first!
|
| For loop over all index tuples and values:
>>> for index, value in ndenumerate(a): ... print index, value ... (0, 0) 2.0 (0, 1) 6.0 (0, 2) 12.0 (1, 0) 4.0 (1, 1) 12.0 (1, 2) 24.0 |
| Arithmetic operations can be used with arrays:
b = 3*a - 1 # a is array, b becomes array1) compute t1 = 3*a, 2) compute t2= t1 - 1, 3) set b = t2 |
| Array operations are much faster than element-wise operations:
>>> import time # module for measuring CPU time >>> a = linspace(0, 1, 1E+07) # create some array >>> t0 = time.clock() >>> b = 3*a -1 >>> t1 = time.clock() # t1-t0 is the CPU time of 3*a-1 >>> for i in xrange(a.size): b[i] = 3*a[i] - 1 >>> t2 = time.clock() >>> print '3*a-1: %g sec, loop: %g sec' % (t1-t0, t2-t1) 3*a-1: 2.09 sec, loop: 31.27 sec |
# let b be an array c = sin(b) c = arcsin(c) c = sinh(b) # same functions for the cos and tan families c = b**2.5 # power function c = log(b) c = exp(b) c = sqrt(b)
# a is an array a.clip(min=3, max=12) # clip elements a.mean(); mean(a) # mean value a.var(); var(a) # variance a.std(); std(a) # standard deviation median(a) cov(x,y) # covariance trapz(a) # Trapezoidal integration diff(a) # finite differences (da/dx) # more Matlab-like functions: corrcoeff, cumprod, diag, eig, eye, fliplr, flipud, max, min, prod, ptp, rot90, squeeze, sum, svd, tri, tril, triu
>>> a = zeros(4) + 3
>>> a
array([ 3., 3., 3., 3.]) # float data
>>> a.item(2) # more efficient than a[2]
3.0
>>> a.itemset(3,-4.5) # more efficient than a[3]=-4.5
>>> a
array([ 3. , 3. , 3. , -4.5])
>>> a.shape = (2,2)
>>> a
array([[ 3. , 3. ],
[ 3. , -4.5]])
>>> a.ravel() # from multi-dim to one-dim
array([ 3. , 3. , 3. , -4.5])
>>> a.ndim # no of dimensions
2
>>> len(a.shape) # no of dimensions
2
>>> rank(a) # no of dimensions
2
>>> a.size # total no of elements
4
>>> b = a.astype(int) # change data type
>>> b
array([3, 3, 3, 3])
| Matplotlib (curve plotting, 2D scalar and vector fields) |
| PyX (PostScript/TeX-like drawing) |
| Interface to Gnuplot |
| Interface to Vtk |
| Interface to OpenDX |
| Interface to IDL |
| Interface to Grace |
| Interface to Matlab |
| Interface to R |
| Interface to Blender |
| Easyviz is a light-weight interface to many plotting packages, using a Matlab-like syntax |
| Goal: write your program using Easyviz (``Matlab'') syntax and postpone your choice of plotting package |
| Note: some powerful plotting packages (Vtk, R, matplotlib, ...) may be troublesome to install, while Gnuplot is easily installed on all platforms |
| Easyviz supports (only) the most common plotting commands |
| Easyviz is part of SciTools (Simula development)
from scitools.all import *(imports all of numpy, all of easyviz, plus scitools) |
from scitools.all import * # import numpy and plotting
t = linspace(0, 3, 51) # 51 points between 0 and 3
y = t**2*exp(-t**2) # vectorized expression
plot(t, y)
hardcopy('tmp1.eps') # make PostScript image for reports
hardcopy('tmp1.png') # make PNG image for web pages
plot(t, y)
xlabel('t')
ylabel('y')
legend('t^2*exp(-t^2)')
axis([0, 3, -0.05, 0.6]) # [tmin, tmax, ymin, ymax]
title('My First Easyviz Demo')
# or
plot(t, y, xlabel='t', ylabel='y',
legend='t^2*exp(-t^2)',
axis=[0, 3, -0.05, 0.6],
title='My First Easyviz Demo',
hardcopy='tmp1.eps',
show=True) # display on the screen (default)
from scitools.all import * # for curve plotting
def f1(t):
return t**2*exp(-t**2)
def f2(t):
return t**2*f1(t)
t = linspace(0, 3, 51)
y1 = f1(t)
y2 = f2(t)
plot(t, y1)
hold('on') # continue plotting in the same plot
plot(t, y2)
xlabel('t')
ylabel('y')
legend('t^2*exp(-t^2)', 't^4*exp(-t^2)')
title('Plotting two curves in the same plot')
hardcopy('tmp2.eps')
Specify $f(x)$ and $x$ interval as text on the command line:
Unix/DOS> python plotf.py "exp(-0.2*x)*sin(2*pi*x)" 0 4*pi | |
| Program:
from scitools.all import * formula = sys.argv[1] xmin = eval(sys.argv[2]) xmax = eval(sys.argv[3]) x = linspace(xmin, xmax, 101) y = eval(formula) plot(x, y, title=formula) |
| Thanks to eval, input (text) with correct Python syntax can be turned to running code on the fly |
from scitools.all import * x = y = linspace(-5, 5, 21) xv, yv = ndgrid(x, y) values = sin(sqrt(xv**2 + yv**2)) surf(xv, yv, values)
# Matlab style commands:
setp(interactive=False)
surf(xv, yv, values)
shading('flat')
colorbar()
colormap(hot())
axis([-6,6,-6,6,-1.5,1.5])
view(35,45)
show()
# Optional Easyviz (Pythonic) short cut:
surf(xv, yv, values,
shading='flat',
colorbar='on',
colormap=hot(),
axis=[-6,6,-6,6,-1.5,1.5],
view=[35,45])
| contour (standard contours)), contourf (filled contours), contour3 (elevated contours) |
| mesh (elevated mesh), meshc (elevated mesh with contours in the xy plane) |
| surf (colored surface), surfc (colored surface with contours in the xy plane) |
| pcolor (colored cells in a 2D mesh) |
| isosurface |
| slice_ (colors in slice plane), contourslice (contours in slice plane) |
| quiver3 (arrows), (quiver for 2D vector fields) |
| streamline, streamtube, streamribbon (flow sheets) |
| A plain text version of the Easyviz manual:
pydoc scitools.easyviz |
| The HTML version:
http://folk.uio.no/hpl/easyviz/ |
| Download SciTools (incl.~Easyviz):
http://code.google.com/p/scitools/ |
| An integer array or list can be used as (vectorized) index
>>> a = linspace(1, 8, 8) >>> a array([ 1., 2., 3., 4., 5., 6., 7., 8.]) >>> a[[1,6,7]] = 10 >>> a array([ 1., 10., 3., 4., 5., 6., 10., 10.]) >>> a[range(2,8,3)] = -2 >>> a array([ 1., 10., -2., 4., 5., -2., 10., 10.]) >>> a[a < 0] # pick out the negative elements of a array([-2., -2.]) >>> a[a < 0] = a.max() >>> a array([ 1., 10., 10., 4., 5., 10., 10., 10.]) |
| Such array indices are important for efficient vectorized code |
>>> A = array([[1,2,3],[4,5,6]], float) >>> print A [[ 1. 2. 3.] [ 4. 5. 6.]] >>> b = A[:,1:] >>> print b [[ 2. 3.] [ 5. 6.]] >>> c = 3*b >>> b[:,:] = c # this affects A! >>> print A [[ 1. 6. 9.] [ 4. 15. 18.]] >>> b = 2*c # b refers to new array >>> b[0,0] = -1 # does not affect A >>> print A[0,0] 1.0 >>> A[:,:-1] = 3*c # does not affect b >>> print A [[ 18. 27. 9.] [ 45. 54. 18.]]
>>> from math import sqrt >>> sqrt(-1) Traceback (most recent call last): File "<stdin>", line 1, in <module> ValueError: math domain error >>> from numpy import sqrt >>> sqrt(-1) Warning: invalid value encountered in sqrt nan >>> from cmath import sqrt # complex math functions >>> sqrt(-1) 1j >>> sqrt(4) # cmath functions always return complex... (2+0j) >>> from numpy.lib.scimath import sqrt >>> sqrt(4) 2.0 # real when possible >>> sqrt(-1) 1j # otherwise complex
# Goal: compute roots of a parabola, return real when possible,
# otherwise complex
def roots(a, b, c):
# compute roots of a*x^2 + b*x + c = 0
from numpy.lib.scimath import sqrt
q = sqrt(b**2 - 4*a*c) # q is real or complex
r1 = (-b + q)/(2*a)
r2 = (-b - q)/(2*a)
return r1, r2
>>> a = 1; b = 2; c = 100
>>> roots(a, b, c) # complex roots
((-1+9.94987437107j), (-1-9.94987437107j))
>>> a = 1; b = 4; c = 1
>>> roots(a, b, c) # real roots
(-0.267949192431, -3.73205080757)
>>> import numpy
>>> a = numpy.zeros(5)
>>> type(a)
<type 'numpy.ndarray'>
>>> isinstance(a, ndarray) # is a of type ndarray?
True
>>> a.dtype # data (element) type object
dtype('float64')
>>> a.dtype.name
'float64'
>>> a.dtype.char # character code
'd'
>>> a.dtype.itemsize # no of bytes per array element
8
>>> b = zeros(6, float32)
>>> a.dtype == b.dtype # do a and b have the same data type?
False
>>> c = zeros(2, float)
>>> a.dtype == c.dtype
True
| NumPy has an array type, matrix, much like Matlab's array type
>>> x1 = array([1, 2, 3], float)
>>> x2 = matrix(x1) # or just mat(x)
>>> x2 # row vector
matrix([[ 1., 2., 3.]])
>>> x3 = matrix(x1.transpose() # column vector
>>> x3
matrix([[ 1.],
[ 2.],
[ 3.]])
>>> type(x3)
<class 'numpy.core.defmatrix.matrix'>
>>> isinstance(x3, matrix)
True
|
| Only 1- and 2-dimensional arrays can be matrix |
| For matrix objects, the * operator means matrix-matrix or matrix-vector multiplication (not elementwise multiplication)
>>> A = eye(3) # identity matrix
>>> A = mat(A) # turn array to matrix
>>> A
matrix([[ 1., 0., 0.],
[ 0., 1., 0.],
[ 0., 0., 1.]])
>>> y2 = x2*A # vector-matrix product
>>> y2
matrix([[ 1., 2., 3.]])
>>> y3 = A*x3 # matrix-vector product
>>> y3
matrix([[ 1.],
[ 2.],
[ 3.]])
|
| Let us evaluate f1(x) for a vector x:
def f1(x):
return exp(-x*x)*log(1+x*sin(x))
|
| Calling f1(x) is equivalent to the code
temp1 = -x temp2 = temp1*x temp3 = exp(temp2) temp4 = sin(x)} temp5 = x*temp4 temp6 = 1 + temp4 temp7 = log(temp5) result = temp3*temp7 |
| Expressions like 3*a-1 generates temporary arrays |
| With in-place modifications of arrays, we can avoid temporary arrays
(to some extent)
b = a b *= 3 # or multiply(b, 3, b) b -= 1 # or subtract(b, 1, b)Note: a is changed, use b = a.copy() |
| In-place operations:
a *= 3.0 # multiply a's elements by 3 a -= 1.0 # subtract 1 from each element a /= 3.0 # divide each element by 3 a += 1.0 # add 1 to each element a **= 2.0 # square all elements |
| Assign values to all elements of an existing array:
a[:] = 3*c - 1 # insert values into a a = 3*c - 1 # let a refer to new array object |
| Loops over an array run slowly |
| Vectorization = replace explicit loops by functions calls such that the whole loop is implemented in C (or Fortran) |
| Explicit loops:
r = zeros(x.shape, x.dtype)
for i in xrange(x.size):
r[i] = sin(x[i])
|
| Vectorized version:
r = sin(x) |
| Arithmetic expressions work for both scalars and arrays |
| Many fundamental functions work for scalars and arrays |
| Ex: x**2 + abs(x) works for x scalar or array |
>>> def f(x): ... return x**2 + sinh(x)*exp(-x) + 1 ... >>> # scalar argument: >>> x = 2 >>> f(x) 5.4908421805556333 >>> # array argument: >>> y = array([2, -1, 0, 1.5]) >>> f(y) array([ 5.49084218, -1.19452805, 1. , 3.72510647])
| Consider a function with an if test:
def somefunc(x):
if x < 0:
return 0
else:
return sin(x)
# or
def somefunc(x): return 0 if x < 0 else sin(x)
|
| This function works with a scalar x but not an array |
| Problem: x<0 results in a boolean array, not a boolean value
that can be used in the if test
>>> x = linspace(-1, 1, 3); print x [-1. 0. 1.] >>> y = x < 0 >>> y array([ True, False, False], dtype=bool) >>> bool(y) # turn object into a scalar boolean value ... ValueError: The truth value of an array with more than one element is ambiguous. Use a.any() or a.all() |
| Simplest remedy: use NumPy's vectorize class to allow
array arguments to a function:
>>> somefuncv = vectorize(somefunc, otypes='d') >>> # test: >>> x = linspace(-1, 1, 3); print x [-1. 0. 1.] >>> somefuncv(x) array([ 0. , 0. , 0.84147098])Note: The data type must be specified as a character ('d' for double) |
| The speed of somefuncv is unfortunately quite slow |
| A better solution, using where:
def somefuncv2(x):
x2 = sin(x)
return where(x < 0, 0, x2)
|
def f(x): # scalar x
if condition:
x = <expression1>
else:
x = <expression2>
return x
def f_vectorized(x): # scalar or array x
x1 = <expression1>
x2 = <expression2>
return where(condition, x1, x2)
| Consider a recursion scheme like \] (which arises from a one-dimensional diffusion equation) |
| Straightforward (slow) Python implementation:
n = size(u)-1
for i in xrange(1,n,1):
u_new[i] = beta*u[i-1] + (1-2*beta)*u[i] + beta*u[i+1]
|
| Slices enable us to vectorize the expression:
u[1:n] = beta*u[0:n-1] + (1-2*beta)*u[1:n] + beta*u[2:n+1] |
| Speed-up: factor 10--150 (150 for 3D arrays) |
| Drawing scalar random numbers:
import random random.seed(2198) # control the seed u = random.random() # uniform number on [0,1) u = random.uniform(-1, 1) # uniform number on [-1,1) u = random.gauss(m, s) # number from N(m,s) |
| Vectorized drawing of random numbers (arrays):
from numpy import random random.seed(12) # set seed u = random.random(n) # n uniform numbers on (0,1) u = random.uniform(-1, 1, n) # n uniform numbers on (-1,1) u = random.normal(m, s, n) # n numbers from N(m,s) |
| Note that both modules have the name random! A remedy:
import random as random_number # rename random for scalars from numpy import * # random is now numpy.random |
| solving linear systems |
| computing the determinant of a matrix |
| computing the inverse of a matrix |
| computing eigenvalues and eigenvectors of a matrix |
| solving least-squares problems |
| computing the singular value decomposition of a matrix |
| computing the Cholesky decomposition of a matrix |
from numpy import * # includes import of linalg
# fill matrix A and vectors x and b
b = dot(A, x) # matrix-vector product
y = linalg.solve(A, b) # solve A*y = b
if allclose(x, y, atol=1.0E-12, rtol=1.0E-12):
print 'correct solution!'
d = linalg.det(A)
B = linalg.inv(A)
# check result:
R = dot(A, B) - eye(n) # residual
R_norm = linalg.norm(R) # Frobenius norm of matrix R
print 'Residual R = A*A-inverse - I:', R_norm
A_eigenvalues = linalg.eigvals(A) # eigenvalues only
A_eigenvalues, A_eigenvectors = linalg.eig(A)
for e, v in zip(A_eigenvalues, A_eigenvectors):
print 'eigenvalue %g has corresponding vector\n%s' % (e, v)
x = linspace(0.0, 1.0, n) # coordinates
y_line = -2*x + 3
y = y_line + random.normal(0, 0.25, n) # line with noise
# goal: fit a line to the data points x, y
# create and solve least squares system:
A = array([x, ones(n)])
A = A.transpose()
result = linalg.lstsq(A, y)
# result is a 4-tuple, the solution (a,b) is the 1st entry:
a, b = result[0]
plot(x, y, 'o', # data points w/noise
x, y_line, 'r', # original line
x, a*x + b, 'b') # fitted lines
legend('data points', 'original line', 'fitted line')
hardcopy('myplot.png')
Plain text output to file (just dump repr(array)):
a = linspace(1, 21, 21); a.shape = (2,10)
file = open('tmp.dat', 'w')
file.write('Here is an array a:\n')
file.write(repr(a)) # dump string representation of a
file.close()
| |
Plain text input (just take eval on input line):
file = open('tmp.dat', 'r')
file.readline() # load the first line (a comment)
b = eval(file.read())
file.close()
|
| Dump arrays with cPickle:
# a1 and a2 are two arrays
import cPickle
file = open('tmp.dat', 'wb')
file.write('This is the array a1:\n')
cPickle.dump(a1, file)
file.write('Here is another array a2:\n')
cPickle.dump(a2, file)
file.close()
|
| Read in the arrays again (in correct order):
file = open('tmp.dat', 'rb')
file.readline() # swallow the initial comment line
b1 = cPickle.load(file)
file.readline() # swallow next comment line
b2 = cPickle.load(file)
file.close()
|
| ScientificPython (by Konrad Hinsen) |
| Modules for automatic differentiation, interpolation, data fitting via nonlinear least-squares, root finding, numerical integration, basic statistics, histogram computation, visualization, parallel computing (via MPI or BSP), physical quantities with dimension (units), 3D vectors/tensors, polynomials, I/O support for Fortran files and netCDF |
| Very easy to install |
>>> from Scientific.Physics.PhysicalQuantities \
import PhysicalQuantity as PQ
>>> m = PQ(12, 'kg') # number, dimension
>>> a = PQ('0.88 km/s**2') # alternative syntax (string)
>>> F = m*a
>>> F
PhysicalQuantity(10.56,'kg*km/s**2')
>>> F = F.inBaseUnits()
>>> F
PhysicalQuantity(10560.0,'m*kg/s**2')
>>> F.convertToUnit('MN') # convert to Mega Newton
>>> F
PhysicalQuantity(0.01056,'MN')
>>> F = F + PQ(0.1, 'kPa*m**2') # kilo Pascal m^2
>>> F
PhysicalQuantity(0.010759999999999999,'MN')
>>> F.getValue()
0.010759999999999999
| SciPy is a comprehensive package (by Eric Jones, Travis Oliphant, Pearu Peterson) for scientific computing with Python |
| Much overlap with ScientificPython |
| SciPy interfaces many classical Fortran packages from Netlib (QUADPACK, ODEPACK, MINPACK, ...) |
| Functionality: special functions, linear algebra, numerical integration, ODEs, random variables and statistics, optimization, root finding, interpolation, ... |
| May require some installation efforts (applies ATLAS) |
| See www.scipy.org |
| SymPy is a Python package for symbolic computing |
| Easy to install, easy to extend |
| Easy to use:
>>> from sympy import *
>>> x = Symbol('x')
>>> f = cos(acos(x))
>>> f
cos(acos(x))
>>> sin(x).series(x, 4) # 4 terms of the Taylor series
x - 1/6*x**3 + O(x**4)
>>> dcos = diff(cos(2*x), x)
>>> dcos
-2*sin(2*x)
>>> dcos.subs(x, pi).evalf() # x=pi, float evaluation
0
>>> I = integrate(log(x), x)
>>> print I
-x + x*log(x)
|
|
A Python module, pymat, enables communication with Matlab:
from numpy import * import pymat x = linspace(0, 4*math.pi, 11) m = pymat.open() # can send numpy arrays to Matlab: pymat.put(m, 'x', x); pymat.eval(m, 'y = sin(x)') pymat.eval(m, 'plot(x,y)') # get a new numpy array back: y = pymat.get(m, 'y') |
| Why Python and C are two different worlds |
| Wrapper code |
| Wrapper tools |
| F2PY: wrapping Fortran (and C) code |
| SWIG: wrapping C and C++ code |
| Ch. 5 in the course book |
| F2PY manual |
| SWIG manual |
| Examples coming with the SWIG source code |
| Ch. 9 and 10 in the course book |
| Identify bottlenecks (via profiling) |
| Migrate slow functions to Fortran, C, or C++ |
| Tools make it easy to combine Python with Fortran, C, or C++ |
| Python-F77 via F2PY |
| Python-C via SWIG |
| Python-C++ via SWIG |
| A Python variable can hold different objects:
d = 3.2 # d holds a float d = 'txt' # d holds a string d = Button(frame, text='push') # instance of class Button |
| In C, C++ and Fortran, a variable is declared of a specific type:
double d; d = 4.2; d = "some string"; /* illegal, compiler error */ |
| This difference makes it quite complicated to call C, C++ or Fortran from Python |
| Suppose we have a C function
extern double hw1(double r1, double r2); |
| We want to call this from Python as
from hw import hw1 r1 = 1.2; r2 = -1.2 s = hw1(r1, r2) |
| The Python variables r1 and r2 hold numbers (float), we need to extract these in the C code, convert to double variables, then call hw1, and finally convert the double result to a Python float |
| All this conversion is done in wrapper code |
| Every object in Python is represented by C struct PyObject |
| Wrapper code converts between PyObject variables and plain C variables (from PyObject r1 and r2 to double, and
double result to PyObject):
static PyObject *_wrap_hw1(PyObject *self, PyObject *args) {
PyObject *resultobj;
double arg1, arg2, result;
PyArg_ParseTuple(args,(char *)"dd:hw1",&arg1,&arg2))
result = hw1(arg1,arg2);
resultobj = PyFloat_FromDouble(result);
return resultobj;
}
|
| The wrapper function and hw1 must be compiled and linked to a shared library file |
| This file can be loaded in Python as module |
| Such modules written in other languages are called extension modules |
| A wrapper function is needed for each C function we want to call from Python |
| Wrapper codes are tedious to write |
| There are tools for automating wrapper code development |
| We shall use SWIG (for C/C++) and F2PY (for Fortran) |
| Direct calls through wrapper code enables efficient data transfer; large arrays can be sent by pointers |
| COM, CORBA, ILU, .NET are different technologies; more complex, less efficient, but safer (data are copied) |
| Jython provides a seamless integration of Python and Java |
| Consider this Scientific Hello World module (hw):
import math
def hw1(r1, r2):
s = math.sin(r1 + r2)
return s
def hw2(r1, r2):
s = math.sin(r1 + r2)
print 'Hello, World! sin(%g+%g)=%g' % (r1,r2,s)
Usage:
from hw import hw1, hw2 print hw1(1.0, 0) hw2(1.0, 0) |
| We want to implement the module in Fortran 77, C and C++, and use it as if it were a pure Python module |
| We start with Fortran (F77) |
| F77 code in a file hw.f:
real*8 function hw1(r1, r2)
real*8 r1, r2
hw1 = sin(r1 + r2)
return
end
subroutine hw2(r1, r2)
real*8 r1, r2, s
s = sin(r1 + r2)
write(*,1000) 'Hello, World! sin(',r1+r2,')=',s
1000 format(A,F6.3,A,F8.6)
return
end
|
| Fortran is case insensitive (reAL is as good as real) |
| One statement per line, must start in column 7 or later |
| Comma on separate lines |
| All function arguments are input and output (as pointers in C, or references in C++) |
| A function returning one value is called function |
| A function returning no value is called subroutine |
| Types: real, double precision, real*4, real*8, integer, character (array) |
| Arrays: just add dimension, as in real*8 a(0:m, 0:n) |
| Format control of output requires FORMAT statements |
| F2PY automates integration of Python and Fortran |
| Say the F77 code is in the file hw.f |
| Run F2PY (-m module name, -c for compile+link):
f2py -m hw -c hw.f |
| Load module into Python and test:
from hw import hw1, hw2 print hw1(1.0, 0) hw2(1.0, 0) |
| In Python, hw appears as a module with Python code... |
| It cannot be simpler! |
| In Fortran (and C/C++) functions often modify arguments; here the result s is an output argument:
subroutine hw3(r1, r2, s)
real*8 r1, r2, s
s = sin(r1 + r2)
return
end
|
| Running F2PY results in a module with wrong behavior:
>>> from hw import hw3 >>> r1 = 1; r2 = -1; s = 10 >>> hw3(r1, r2, s) >>> print s 10 # should be 0 |
| Why? F2PY assumes that all arguments are input arguments |
| Output arguments must be explicitly specified! |
| Function with multiple input and output variables
subroutine somef(i1, i2, o1, o2, o3, o4, io1) |
| input: i1, i2 |
| output: o1, ..., o4 |
| input and output: io1 |
| Pythonic interface, as generated by F2PY:
o1, o2, o3, o4, io1 = somef(i1, i2, io1) |
| What happened to our hw3 subroutine? |
| F2PY generates doc strings that document the interface:
>>> import hw >>> print hw.__doc__ # brief module doc string Functions: hw1 = hw1(r1,r2) hw2(r1,r2) hw3(r1,r2,s) >>> print hw.hw3.__doc__ # more detailed function doc string hw3 - Function signature: hw3(r1,r2,s) Required arguments: r1 : input float r2 : input float s : input float |
| We see that hw3 assumes s is input argument! |
| Remedy: adjust the interface |
| We can tailor the interface by editing an F2PY-generated interface file |
| Run F2PY in two steps: (i) generate interface file, (ii) generate wrapper code, compile and link |
| Generate interface file hw.pyf (-h option):
f2py -m hw -h hw.pyf hw.f |
| The interface applies a Fortran 90 module (class) syntax |
| Each function/subroutine, its arguments and its return value is specified:
python module hw ! in
interface ! in :hw
...
subroutine hw3(r1,r2,s) ! in :hw:hw.f
real*8 :: r1
real*8 :: r2
real*8 :: s
end subroutine hw3
end interface
end python module hw
(Fortran 90 syntax)
|
| We may edit hw.pyf and specify s in hw3 as an output argument, using F90's intent(out) keyword:
python module hw ! in
interface ! in :hw
...
subroutine hw3(r1,r2,s) ! in :hw:hw.f
real*8 :: r1
real*8 :: r2
real*8, intent(out) :: s
end subroutine hw3
end interface
end python module hw
|
| Next step: run F2PY with the edited interface file:
f2py -c hw.pyf hw.f |
| Load the module and print its doc string:
>>> import hw >>> print hw.__doc__ Functions: hw1 = hw1(r1,r2) hw2(r1,r2) s = hw3(r1,r2)Oops! hw3 takes only two arguments and returns s! |
| This is the ``Pythonic'' function style; input data are arguments, output data are returned |
| By default, F2PY treats all arguments as input |
| F2PY generates Pythonic interfaces, different from the original Fortran interfaces, so check out the module's doc string! |
| Function with multiple input and output variables
subroutine somef(i1, i2, o1, o2, o3, o4, io1) |
| input: i1, i2 |
| output: o1, ..., o4 |
| input and output: io1 |
| Pythonic interface (as generated by F2PY):
o1, o2, o3, o4, io1 = somef(i1, i2, io1) |
| In the interface file:
python module somemodule
interface
...
subroutine somef(i1, i2, o1, o2, o3, o4, io1)
real*8, intent(in) :: i1
real*8, intent(in) :: i2
real*8, intent(out) :: o1
real*8, intent(out) :: o2
real*8, intent(out) :: o3
real*8, intent(out) :: o4
real*8, intent(in,out) :: io1
end subroutine somef
...
end interface
end python module somemodule
|
| Note: no intent implies intent(in) |
| Instead of editing the interface file, we can add
special F2PY comments in the Fortran source code:
subroutine somef(i1, i2, o1, o2, o3, o4, io1)
real*8 i1, i2, o1, o2, o3, o4, io1
Cf2py intent(in) i1
Cf2py intent(in) i2
Cf2py intent(out) o1
Cf2py intent(out) o2
Cf2py intent(out) o3
Cf2py intent(out) o4
Cf2py intent(in,out) io1
|
| Now a single F2PY command generates correct interface:
f2py -m hw -c hw.f |
| With Fortran 90:
subroutine somef(i1, i2, o1, o2, o3, o4, io1) real*8 i1, i2, o1, o2, o3, o4, io1 !f2py intent(in) i1 !f2py intent(in) i2 !f2py intent(out) o1 !f2py intent(out) o2 !f2py intent(out) o3 !f2py intent(out) o4 !f2py intent(in,out) io1 |
| Now a single F2PY command generates correct interface:
f2py -m hw -c hw.f |
| Let us implement the hw module in C:
#include <stdio.h>
#include <math.h>
#include <stdlib.h>
double hw1(double r1, double r2)
{
double s; s = sin(r1 + r2); return s;
}
void hw2(double r1, double r2)
{
double s; s = sin(r1 + r2);
printf("Hello, World! sin(%g+%g)=%g\n", r1, r2, s);
}
/* special version of hw1 where the result is an argument: */
void hw3(double r1, double r2, double *s)
{
*s = sin(r1 + r2);
}
|
| F2PY can also wrap C code if we specify the function signatures as Fortran 90 modules | ||||||
| My procedure:
|
C file signatures.f
real*8 function hw1(r1, r2)
Cf2py intent(c) hw1
real*8 r1, r2
Cf2py intent(c) r1, r2
end
subroutine hw2(r1, r2)
Cf2py intent(c) hw2
real*8 r1, r2
Cf2py intent(c) r1, r2
end
subroutine hw3(r1, r2, s)
Cf2py intent(c) hw3
real*8 r1, r2, s
Cf2py intent(c) r1, r2
Cf2py intent(out) s
end
| Run
Unix/DOS> f2py -m hw -h hw.pyf signatures.f |
| Result: hw.pyf
python module hw ! in
interface ! in :hw
function hw1(r1,r2) ! in :hw:signatures.f
intent(c) hw1
real*8 intent(c) :: r1
real*8 intent(c) :: r2
real*8 intent(c) :: hw1
end function hw1
...
subroutine hw3(r1,r2,s) ! in :hw:signatures.f
intent(c) hw3
real*8 intent(c) :: r1
real*8 intent(c) :: r2
real*8 intent(out) :: s
end subroutine hw3
end interface
end python module hw
|
| Run
Unix/DOS> f2py -c hw.pyf hw.c |
| Test:
import hw print hw.hw3(1.0,-1.0) print hw.__doc__ |
| One can either write the interface file by hand or write F77 code to generate, but for every C function the Fortran signature must be specified |
| Wrappers to C and C++ codes can be automatically generated by SWIG |
| SWIG is more complicated to use than F2PY |
| First make a SWIG interface file |
| Then run SWIG to generate wrapper code |
| Then compile and link the C code and the wrapper code |
| The interface file contains C preprocessor directives and special SWIG directives:
/* file: hw.i */
%module hw
%{
/* include C header files necessary to compile the interface */
#include "hw.h"
%}
/* list functions to be interfaced: */
double hw1(double r1, double r2);
void hw2(double r1, double r2);
void hw3(double r1, double r2, double *s);
# or
%include "hw.h" /* make interface to all funcs in hw.h */
|
| Run SWIG (preferably in a subdirectory):
swig -python -I.. hw.i |
| SWIG generates wrapper code in
hw_wrap.c |
| Compile and link a shared library module:
gcc -I.. -O -I/some/path/include/python2.5 \
-c ../hw.c hw_wrap.c
gcc -shared -o _hw.so hw.o hw_wrap.o
Note the underscore prefix in _hw.so
|
| Can automate the compile+link process |
| Can use Python to extract where Python.h resides (needed by any wrapper code)
swig -python -I.. hw.i root=`python -c 'import sys; print sys.prefix'` ver=`python -c 'import sys; print sys.version[:3]'` gcc -O -I.. -I$root/include/python$ver -c ../hw.c hw_wrap.c gcc -shared -o _hw.so hw.o hw_wrap.o python -c "import hw" # test(these statements are found in make_module_1.sh) |
| The module consists of two files: hw.py (which loads) _hw.so |
| Python has a tool, Distutils, for compiling and linking extension modules |
| First write a script setup.py:
import os
from distutils.core import setup, Extension
name = 'hw' # name of the module
version = 1.0 # the module's version number
swig_cmd = 'swig -python -I.. %s.i' % name
print 'running SWIG:', swig_cmd
os.system(swig_cmd)
sources = ['../hw.c', 'hw_wrap.c']
setup(name = name, version = version,
ext_modules = [Extension('_' + name, # SWIG requires _
sources,
include_dirs=[os.pardir])
])
|
| Now run
python setup.py build_ext python setup.py install --install-platlib=. python -c 'import hw' # test |
| Can install resulting module files in any directory |
| Use Distutils for professional distribution! |
| Recall hw3:
void hw3(double r1, double r2, double *s)
{
*s = sin(r1 + r2);
}
|
| Test:
>>> from hw import hw3 >>> r1 = 1; r2 = -1; s = 10 >>> hw3(r1, r2, s) >>> print s 10 # should be 0 (sin(1-1)=0)Major problem - as in the Fortran case |
| We need to adjust the SWIG interface file:
/* typemaps.i allows input and output pointer arguments to be specified using the names INPUT, OUTPUT, or INOUT */ %include "typemaps.i" void hw3(double r1, double r2, double *OUTPUT); |
| Now the usage from Python is
s = hw3(r1, r2) |
| Unfortunately, SWIG does not document this in doc strings |
| SIP: tool for wrapping C++ libraries |
| Boost.Python: tool for wrapping C++ libraries |
| CXX: C++ interface to Python (Boost is a replacement) |
| Note: SWIG can generate interfaces to most scripting languages (Perl, Ruby, Tcl, Java, Guile, Mzscheme, ...) |
| SWIG supports C++ |
| The only difference is when we run SWIG (-c++ option):
swig -python -c++ -I.. hw.i # generates wrapper code in hw_wrap.cxx |
| Use a C++ compiler to compile and link:
root=`python -c 'import sys; print sys.prefix'`
ver=`python -c 'import sys; print sys.version[:3]'`
g++ -O -I.. -I$root/include/python$ver \
-c ../hw.cpp hw_wrap.cxx
g++ -shared -o _hw.so hw.o hw_wrap.o
|
| This is like interfacing C functions, except that pointers are usual replaced by references
void hw3(double r1, double r2, double *s) // C style
{ *s = sin(r1 + r2); }
void hw4(double r1, double r2, double& s) // C++ style
{ s = sin(r1 + r2); }
|
| Interface file (hw.i):
%module hw
%{
#include "hw.h"
%}
%include "typemaps.i"
%apply double *OUTPUT { double* s }
%apply double *OUTPUT { double& s }
%include "hw.h"
|
| That's it! |
| C++ classes add more to the SWIG-C story |
| Consider a class version of our Hello World module:
class HelloWorld
{
protected:
double r1, r2, s;
void compute(); // compute s=sin(r1+r2)
public:
HelloWorld();
~HelloWorld();
void set(double r1, double r2);
double get() const { return s; }
void message(std::ostream& out) const;
};
|
| Goal: use this class as a Python class |
| Function bodies:
void HelloWorld:: set(double r1_, double r2_)
{
r1 = r1_; r2 = r2_;
compute(); // compute s
}
void HelloWorld:: compute()
{ s = sin(r1 + r2); }
etc.
|
| Usage:
HelloWorld hw; hw.set(r1, r2); hw.message(std::cout); // write "Hello, World!" message |
| Files: HelloWorld.h, HelloWorld.cpp |
| To illustrate how to handle class hierarchies, we add a subclass:
class HelloWorld2 : public HelloWorld
{
public:
void gets(double& s_) const;
};
void HelloWorld2:: gets(double& s_) const { s_ = s; }
i.e., we have a function with an output argument
|
| Note: gets should return the value when called from Python |
| Files: HelloWorld2.h, HelloWorld2.cpp |
/* file: hw.i */
%module hw
%{
/* include C++ header files necessary to compile the interface */
#include "HelloWorld.h"
#include "HelloWorld2.h"
%}
%include "HelloWorld.h"
%include "typemaps.i"
%apply double* OUTPUT { double& s }
%include "HelloWorld2.h"
| SWIG allows us to add class methods |
| Calling message with standard output (std::cout) is tricky from Python so we add a print method for printing to std.output |
| print coincides with Python's keyword print so we follow the convention of adding an underscore:
%extend HelloWorld {
void print_() { self->message(std::cout); }
}
|
| This is basically C++ syntax, but self is used instead of this and \%extend HelloWorld is a SWIG directive |
| Make extension module:
swig -python -c++ -I.. hw.i # compile HelloWorld.cpp HelloWorld2.cpp hw_wrap.cxx # link HelloWorld.o HelloWorld2.o hw_wrap.o to _hw.so |
from hw import HelloWorld hw = HelloWorld() # make class instance r1 = float(sys.argv[1]); r2 = float(sys.argv[2]) hw.set(r1, r2) # call instance method s = hw.get() print "Hello, World! sin(%g + %g)=%g" % (r1, r2, s) hw.print_() hw2 = HelloWorld2() # make subclass instance hw2.set(r1, r2) s = hw.gets() # original output arg. is now return value print "Hello, World2! sin(%g + %g)=%g" % (r1, r2, s)
| It looks that the C++ class hierarchy is mirrored in Python |
| Actually, SWIG wraps a function interface to any class:
import _hw # use _hw.so directly _hw.HelloWorld_set(r1, r2) |
| SWIG also makes a proxy class in hw.py, mirroring the
original C++ class:
import hw # use hw.py interface to _hw.so c = hw.HelloWorld() c.set(r1, r2) # calls _hw.HelloWorld_set(r1, r2) |
| The proxy class introduces overhead |
| Introductory GUI programming |
| Scientific Hello World examples |
| GUI for simviz1.py |
| GUI elements: text, input text, buttons, sliders, frames (for controlling layout) |
| Tk (Tkinter) |
| Qt (PyQt) |
| wxWidgets (wxPython) |
| Gtk (PyGtk) |
| Java Foundation Classes (JFC) (java.swing in Jython) |
| Microsoft Foundation Classes (PythonWin) |
| Tkinter has been the default Python GUI toolkit |
| Most Python installations support Tkinter |
| PyGtk, PyQt and wxPython are increasingly popular and more sophisticated toolkits |
| These toolkits require huge C/C++ libraries (Gtk, Qt, wxWindows) to be installed on the user's machine |
| Some prefer to generate GUIs using an interactive designer tool, which automatically generates calls to the GUI toolkit |
| Some prefer to program the GUI code (or automate that process) |
| It is very wise (and necessary) to learn some GUI programming even if you end up using a designer tool |
| We treat Tkinter (with extensions) here since it is so widely available and simpler to use than its competitors |
| See doc.html for links to literature on PyGtk, PyQt, wxPython and associated designer tools |
| Ch. 6 in the course book |
| ``Introduction to Tkinter'' by Lundh (see doc.html) |
| Efficient working style: grab GUI code from examples |
| Demo programs:
$PYTHONSRC/Demo/tkinter demos/All.py in the Pmw source tree $scripting/src/gui/demoGUI.py |
| Tkinter is an interface to the Tk package in C (for Tcl/Tk) |
| Megawidgets, built from basic Tkinter widgets, are available in Pmw (Python megawidgets) and Tix |
| Pmw is written in Python |
| Tix is written in C (and as Tk, aimed at Tcl users) |
| GUI programming becomes simpler and more modular by using classes; Python supports this programming style |
| Graphical user interface (GUI) for computing the sine of numbers | ||||||||
| The complete window is made of widgets (also referred to as windows) | ||||||||
| Widgets from left to right:
|
#!/usr/bin/env python
from Tkinter import *
import math
root = Tk() # root (main) window
top = Frame(root) # create frame (good habit)
top.pack(side='top') # pack frame in main window
hwtext = Label(top, text='Hello, World! The sine of')
hwtext.pack(side='left')
r = StringVar() # special variable to be attached to widgets
r.set('1.2') # default value
r_entry = Entry(top, width=6, relief='sunken', textvariable=r)
r_entry.pack(side='left')
s = StringVar() # variable to be attached to widgets
def comp_s():
global s
s.set('%g' % math.sin(float(r.get()))) # construct string
compute = Button(top, text=' equals ', command=comp_s)
compute.pack(side='left')
s_label = Label(top, textvariable=s, width=18)
s_label.pack(side='left')
root.mainloop()
| A widget has a parent widget |
| A widget must be packed (placed in the parent widget) before it can appear visually |
| Typical structure:
widget = Tk_class(parent_widget,
arg1=value1, arg2=value2)
widget.pack(side='left')
|
| Variables can be tied to the contents of, e.g., text entries, but only special Tkinter variables are legal: StringVar, DoubleVar, IntVar |
| No widgets are visible before we call the event loop:
root.mainloop() |
| This loop waits for user input (e.g. mouse clicks) |
| There is no predefined program flow after the event loop is invoked; the program just responds to events |
| The widgets define the event responses |
| Instead of clicking "equals", pressing return in the entry window computes the sine value
# bind a Return in the .r entry to calling comp_s:
r_entry.bind('<Return>', comp_s)
|
| One can bind any keyboard or mouse event to user-defined functions |
| We have also replaced the "equals" button by a straight label |
| The pack command determines the placement of the widgets:
widget.pack(side='left')This results in stacking widgets from left to right |
| Packing from top to bottom:
widget.pack(side='top')results in
|
| Values of side: left, right, top, bottom |
| Frame: empty widget holding other widgets (used to group widgets) |
| Make 3 frames, packed from top |
| Each frame holds a row of widgets |
| Middle frame: 4 widgets packed from left |
# create frame to hold the middle row of widgets:
rframe = Frame(top)
# this frame (row) is packed from top to bottom:
rframe.pack(side='top')
# create label and entry in the frame and pack from left:
r_label = Label(rframe, text='The sine of')
r_label.pack(side='left')
r = StringVar() # variable to be attached to widgets
r.set('1.2') # default value
r_entry = Entry(rframe, width=6, relief='sunken', textvariable=r)
r_entry.pack(side='left')
# platform-independent font name:
font = 'times 18 bold'
# or X11-style:
font = '-adobe-times-bold-r-normal-*-18-*-*-*-*-*-*-*'
hwtext = Label(hwframe, text='Hello, World!',
font=font)
padx and pady adds space around widgets:
hwtext.pack(side='top', pady=20) rframe.pack(side='top', padx=10, pady=20)
quit_button = Button(top,
text='Goodbye, GUI World!',
command=quit,
background='yellow',
foreground='blue')
quit_button.pack(side='top', pady=5, fill='x')
# fill='x' expands the widget throughout the available
# space in the horizontal direction
| The anchor option can move widgets:
quit_button.pack(anchor='w') # or 'center', 'nw', 's' and so on # default: 'center' |
| ipadx/ipady: more space inside the widget
quit_button.pack(side='top', pady=5,
ipadx=30, ipady=30, anchor='w')
|
$scripting/src/tools/packdemo.tcl
| Alternative to pack: grid |
| Widgets are organized in m times n cells, like a spreadsheet |
| Widget placement:
widget.grid(row=1, column=5) |
| A widget can span more than one cell
widget.grid(row=1, column=2, columnspan=4) |
| Padding as with pack (padx, ipadx etc.) |
| sticky replaces anchor and fill |
# use grid to place widgets in 3x4 cells:
hwtext.grid(row=0, column=0, columnspan=4, pady=20)
r_label.grid(row=1, column=0)
r_entry.grid(row=1, column=1)
compute.grid(row=1, column=2)
s_label.grid(row=1, column=3)
quit_button.grid(row=2, column=0, columnspan=4, pady=5,
sticky='ew')
| sticky='w' means anchor='w' (move to west) |
| sticky='ew' means fill='x' (move to east and west) |
| sticky='news' means fill='both' (expand in all dirs) |
| So far: variables tied to text entry and result label | ||||
| Another method:
| ||||
| Can use configure to update any widget property |
| No variable is tied to the entry:
r_entry = Entry(rframe, width=6, relief='sunken')
r_entry.insert('end','1.2') # insert default value
r = float(r_entry.get())
s = math.sin(r)
s_label.configure(text=str(s))
|
| Other properties can be configured:
s_label.configure(background='yellow') |
| With the basic knowledge of GUI programming, you may try out a designer tool for interactive automatic generation of a GUI |
| Glade: designer tool for PyGtk |
| Gtk, PyGtk and Glade must be installed (not part of Python!) |
| See doc.html for introductions to Glade |
| Working style: pick a widget, place it in the GUI window, open a properties dialog, set packing parameters, set callbacks (signals in PyGtk), etc. |
| Glade stores the GUI in an XML file |
| The GUI is hence separate from the application code |
| GUIs are conveniently implemented as classes |
| Classes in Python are similar to classes in Java and C++ |
| Constructor: create and pack all widgets |
| Methods: called by buttons, events, etc. |
| Attributes: hold widgets, widget variables, etc. |
| The class instance can be used as an encapsulated GUI component in other GUIs (like a megawidget) |
| Declare a base class MyBase:
class MyBase:
def __init__(self,i,j): # constructor
self.i = i; self.j = j
def write(self): # member function
print 'MyBase: i=',self.i,'j=',self.j
|
| self is a reference to this object |
| Data members are prefixed by self: self.i, self.j |
| All functions take self as first argument in the
declaration, but not in the call
inst1 = MyBase(6,9); inst1.write() |
| Class MySub is a subclass of MyBase:
class MySub(MyBase):
def __init__(self,i,j,k): # constructor
MyBase.__init__(self,i,j)
self.k = k;
def write(self):
print 'MySub: i=',self.i,'j=',self.j,'k=',self.k
|
| Example:
# this function works with any object that has a write method: def write(v): v.write() # make a MySub instance inst2 = MySub(7,8,9) write(inst2) # will call MySub's write |
class HelloWorld:
def __init__(self, parent):
# store parent
# create widgets as in hwGUI9.py
def quit(self, event=None):
# call parent's quit, for use with binding to 'q'
# and quit button
def comp_s(self, event=None):
# sine computation
root = Tk()
hello = HelloWorld(root)
root.mainloop()
class HelloWorld:
def __init__(self, parent):
self.parent = parent # store the parent
top = Frame(parent) # create frame for all class widgets
top.pack(side='top') # pack frame in parent's window
# create frame to hold the first widget row:
hwframe = Frame(top)
# this frame (row) is packed from top to bottom:
hwframe.pack(side='top')
# create label in the frame:
font = 'times 18 bold'
hwtext = Label(hwframe, text='Hello, World!', font=font)
hwtext.pack(side='top', pady=20)
# create frame to hold the middle row of widgets:
rframe = Frame(top)
# this frame (row) is packed from top to bottom:
rframe.pack(side='top', padx=10, pady=20)
# create label and entry in the frame and pack from left:
r_label = Label(rframe, text='The sine of')
r_label.pack(side='left')
self.r = StringVar() # variable to be attached to r_entry
self.r.set('1.2') # default value
r_entry = Entry(rframe, width=6, textvariable=self.r)
r_entry.pack(side='left')
r_entry.bind('<Return>', self.comp_s)
compute = Button(rframe, text=' equals ',
command=self.comp_s, relief='flat')
compute.pack(side='left')
self.s = StringVar() # variable to be attached to s_label
s_label = Label(rframe, textvariable=self.s, width=12)
s_label.pack(side='left')
# finally, make a quit button:
quit_button = Button(top, text='Goodbye, GUI World!',
command=self.quit,
background='yellow', foreground='blue')
quit_button.pack(side='top', pady=5, fill='x')
self.parent.bind('<q>', self.quit)
def quit(self, event=None):
self.parent.quit()
def comp_s(self, event=None):
self.s.set('%g' % math.sin(float(self.r.get())))
| Event bindings call functions that take an event object as argument:
self.parent.bind('<q>', self.quit)
def quit(self,event): # the event arg is required!
self.parent.quit()
|
| Button must call a quit function without arguments:
def quit():
self.parent.quit()
quit_button = Button(frame, text='Goodbye, GUI World!',
command=quit)
|
| Here is aunified quit function that can be used with buttons and event bindings:
def quit(self, event=None):
self.parent.quit()
|
| Keyword arguments and None as default value make Python programming effective! |
Label + entry + label + entry + button + label
# f_widget, x_widget are text entry widgets f_txt = f_widget.get() # get function expression as string x = float(x_widget.get()) # get x as float ##### res = eval(f_txt) # turn f_txt expression into Python code ##### label.configure(text='%g' % res) # display f(x)
| eval(s) evaluates a Python expression s
eval('sin(1.2) + 3.1**8')
|
| exec(s) executes the string s as Python code
s = 'x = 3; y = sin(1.2*x) + x**8' exec(s) |
| Main application: get Python expressions from a GUI (no need to parse mathematical expressions if they follow the Python syntax!), build tailored code at run-time depending on input to the script |
| Recall simviz1.py: automating simulation and visualization of an oscillating system via a simple command-line interface |
| GUI interface: |
class SimVizGUI:
def __init__(self, parent):
"""build the GUI"""
self.parent = parent
...
self.p = {} # holds all Tkinter variables
self.p['m'] = DoubleVar(); self.p['m'].set(1.0)
self.slider(slider_frame, self.p['m'], 0, 5, 'm')
self.p['b'] = DoubleVar(); self.p['b'].set(0.7)
self.slider(slider_frame, self.p['b'], 0, 2, 'b')
self.p['c'] = DoubleVar(); self.p['c'].set(5.0)
self.slider(slider_frame, self.p['c'], 0, 20, 'c')
def slider(self, parent, variable, low, high, label):
"""make a slider [low,high] tied to variable"""
widget = Scale(parent, orient='horizontal',
from_=low, to=high, # range of slider
# tickmarks on the slider "axis":
tickinterval=(high-low)/5.0,
# the steps of the counter above the slider:
resolution=(high-low)/100.0,
label=label, # label printed above the slider
length=300, # length of slider in pixels
variable=variable) # slider value is tied to variable
widget.pack(side='top')
return widget
def textentry(self, parent, variable, label):
"""make a textentry field tied to variable"""
...
| Use three frames: left, middle, right |
| Place sliders in the left frame |
| Place text entry fields in the middle frame |
| Place a sketch of the system in the right frame |
| Version 1 of creating a text field: straightforward packing of labels and entries in frames:
def textentry(self, parent, variable, label):
"""make a textentry field tied to variable"""
f = Frame(parent)
f.pack(side='top', padx=2, pady=2)
l = Label(f, text=label)
l.pack(side='left')
widget = Entry(f, textvariable=variable, width=8)
widget.pack(side='left', anchor='w')
return widget
|
| Use the grid geometry manager to place labels and text entry fields in a spreadsheet-like fashion:
def textentry(self, parent, variable, label):
"""make a textentry field tied to variable"""
l = Label(parent, text=label)
l.grid(column=0, row=self.row_counter, sticky='w')
widget = Entry(parent, textvariable=variable, width=8)
widget.grid(column=1, row=self.row_counter)
self.row_counter += 1
return widget
|
| You can mix the use of grid and pack, but not within the same frame |
sketch_frame = Frame(self.parent)
sketch_frame.pack(side='left', padx=2, pady=2)
gifpic = os.path.join(os.environ['scripting'],
'src','gui','figs','simviz2.xfig.t.gif')
self.sketch = PhotoImage(file=gifpic)
# (images must be tied to a global or class variable!)
Label(sketch_frame,image=self.sketch).pack(side='top',pady=20)
| Straight buttons calling a function |
| Simulate: copy code from simviz1.py (create dir, create input file, run simulator) |
| Visualize: copy code from simviz1.py (create file with Gnuplot commands, run Gnuplot) |
| Example: display a file in a text widget
root = Tk()
top = Frame(root); top.pack(side='top')
text = Pmw.ScrolledText(top, ...
text.pack()
# insert file as a string in the text widget:
text.insert('end', open(filename,'r').read())
|
| Problem: the text widget is not resized when the main window is resized |
| Solution: combine the expand and fill options to pack:
text.pack(expand=1, fill='both') # all parent widgets as well: top.pack(side='top', expand=1, fill='both')expand allows the widget to expand, fill tells in which directions the widget is allowed to expand |
| Try fileshow1.py and fileshow2.py! |
| Resizing is important for text, canvas and list widgets |
Very useful demo program in All.py (comes with Pmw)
| A Python script can act both as a library file (module) and an executable test example |
| The test example is in a special end block
# demo program ("main" function) in case we run the script
# from the command line:
if __name__ == '__main__':
root = Tkinter.Tk()
Pmw.initialise(root)
root.title('preliminary test of ScrolledListBox')
# test:
widget = MyLibGUI(root)
root.mainloop()
|
| Makes a built-in test for verification |
| Serves as documentation of usage |
| Migrating slow for loops over NumPy arrays to Fortran, C and C++ |
| F2PY handling of arrays |
| Handwritten C and C++ modules |
| C++ class for wrapping NumPy arrays |
| C++ modules using SCXX |
| Pointer communication and SWIG |
| Efficiency considerations |
| Ch. 5, 9 and 10 in the course book |
| F2PY manual |
| SWIG manual |
| Examples coming with the SWIG source code |
| Electronic Python documentation: Extending and Embedding..., Python/C API |
| Python in a Nutshell |
| Python Essential Reference (Beazley) |
| Fill a NumPy array with function values:
n = 2000
a = zeros((n,n))
xcoor = arange(0,1,1/float(n))
ycoor = arange(0,1,1/float(n))
for i in range(n):
for j in range(n):
a[i,j] = f(xcoor[i], ycoor[j]) # f(x,y) = sin(x*y) + 8*x
|
| Fortran/C/C++ version: (normalized) time 1.0 |
| NumPy vectorized evaluation of f: time 3.0 |
| Python loop version (version): time 140 (math.sin) |
| Python loop version (version): time 350 (numarray.sin) |
| Python loops over arrays are extremely slow |
| NumPy vectorization may be sufficient |
| However, NumPy vectorization may be inconvenient - plain loops in Fortran/C/C++ are much easier |
| Write administering code in Python |
| Identify bottlenecks (via profiling) |
| Migrate slow Python code to Fortran, C, or C++ |
| Python-Fortran w/NumPy arrays via F2PY: easy |
| Python-C/C++ w/NumPy arrays via SWIG: not that easy, handwritten wrapper code is most common |
| Consider a rectangular 2D grid
|
| A NumPy array a[i,j] holds values at the grid points |
| Python class:
class Grid2D:
def __init__(self,
xmin=0, xmax=1, dx=0.5,
ymin=0, ymax=1, dy=0.5):
self.xcoor = sequence(xmin, xmax, dx)
self.ycoor = sequence(ymin, ymax, dy)
# make two-dim. versions of these arrays:
# (needed for vectorization in __call__)
self.xcoorv = self.xcoor[:,newaxis]
self.ycoorv = self.ycoor[newaxis,:]
def __call__(self, f):
# vectorized code:
return f(self.xcoorv, self.ycoorv)
|
| Include a straight Python loop also:
class Grid2D:
....
def gridloop(self, f):
lx = size(self.xcoor); ly = size(self.ycoor)
a = zeros((lx,ly))
for i in range(lx):
x = self.xcoor[i]
for j in range(ly):
y = self.ycoor[j]
a[i,j] = f(x, y)
return a
|
| Usage:
g = Grid2D(dx=0.01, dy=0.2)
def myfunc(x, y):
return sin(x*y) + y
a = g(myfunc)
i=4; j=10;
print 'value at (%g,%g) is %g' % (g.xcoor[i],g.ycoor[j],a[i,j])
|
class Grid2Deff(Grid2D):
def __init__(self,
xmin=0, xmax=1, dx=0.5,
ymin=0, ymax=1, dy=0.5):
Grid2D.__init__(self, xmin, xmax, dx, ymin, ymax, dy)
def ext_gridloop1(self, f):
"""compute a[i,j] = f(xi,yj) in an external routine."""
lx = size(self.xcoor); ly = size(self.ycoor)
a = zeros((lx,ly))
ext_gridloop.gridloop1(a, self.xcoor, self.ycoor, f)
return a
We can also migrate to C and C++ (done later)
| First try (typical attempt by a Fortran/C programmer):
subroutine gridloop1(a, xcoor, ycoor, nx, ny, func1)
integer nx, ny
real*8 a(0:nx-1,0:ny-1), xcoor(0:nx-1), ycoor(0:ny-1)
real*8 func1
external func1
integer i,j
real*8 x, y
do j = 0, ny-1
y = ycoor(j)
do i = 0, nx-1
x = xcoor(i)
a(i,j) = func1(x, y)
end do
end do
return
end
|
| Note: float type in NumPy array must match real*8 or double precision in Fortran! (Otherwise F2PY will take a copy of the array a so the type matches that in the F77 code) |
| Run F2PY:
f2py -m ext_gridloop -c gridloop.f |
| Try it from Python:
import ext_gridloop
ext_gridloop.gridloop1(a, self.xcoor, self.ycoor, myfunc,
size(self.xcoor), size(self.ycoor))
wrong results; a is not modified!
|
| Reason: the gridloop1 function works on a copy a (because higher-dimensional arrays are stored differently in C/Python and Fortran) |
| C and C++ has row-major storage (two-dimensional arrays are stored row by row) |
| Fortran has column-major storage (two-dimensional arrays are stored column by column) |
| Multi-dimensional arrays: first index has fastest variation in Fortran, last index has fastest variation in C and C++ |
| F2PY-generated modules treat storage schemes transparently |
| If input array has C storage, a copy is taken, calculated with, and returned as output |
| F2PY needs to know whether arguments are input, output or both |
| To monitor (hidden) array copying, turn on the flag
f2py ... -DF2PY_REPORT_ON_ARRAY_COPY=1 |
| In-place operations on NumPy arrays are possible in Fortran, but the default is to work on a copy, that is why our gridloop1 function does not work |
| Insert Cf2py comments to tell that a is an output variable:
subroutine gridloop2(a, xcoor, ycoor, nx, ny, func1)
integer nx, ny
real*8 a(0:nx-1,ny-1), xcoor(0:nx-1), ycoor(0:ny-1), func1
external func1
Cf2py intent(out) a
Cf2py intent(in) xcoor
Cf2py intent(in) ycoor
Cf2py depend(nx,ny) a
|
| F2PY generates this Python interface:
>>> import ext_gridloop
>>> print ext_gridloop.gridloop2.__doc__
gridloop2 - Function signature:
a = gridloop2(xcoor,ycoor,func1,[nx,ny,func1_extra_args])
Required arguments:
xcoor : input rank-1 array('d') with bounds (nx)
ycoor : input rank-1 array('d') with bounds (ny)
func1 : call-back function
Optional arguments:
nx := len(xcoor) input int
ny := len(ycoor) input int
func1_extra_args := () input tuple
Return objects:
a : rank-2 array('d') with bounds (nx,ny)
|
| nx and ny are optional (!) |
| Output arrays are returned and are not part of the argument list, as seen from Python |
| Need depend(nx,ny) a to specify that a is to be created with size nx, ny in the wrapper |
| Array dimensions are optional arguments (!)
class Grid2Deff(Grid2D):
...
def ext_gridloop2(self, f):
a = ext_gridloop.gridloop2(self.xcoor, self.ycoor, f)
return a
|
| The modified interface is well documented in the doc strings generated by F2PY |
| What if we really want to send a as argument and let F77 modify it?
def ext_gridloop1(self, f):
lx = size(self.xcoor); ly = size(self.ycoor)
a = zeros((lx,ly))
ext_gridloop.gridloop1(a, self.xcoor, self.ycoor, f)
return a
|
| This is not Pythonic code, but it can be realized |
| 1. the array must have Fortran storage |
| 2. the array argument must be intent(inout) (in general not recommended) |
| F2PY generated modules has a function for checking if an array has column major storage (i.e., Fortran storage):
>>> a = zeros((n,n), order='Fortran') >>> isfortran(a) True >>> a = asarray(a, order='C') # back to C storage >>> isfortran(a) False |
| Fortran function:
subroutine gridloop1(a, xcoor, ycoor, nx, ny, func1)
integer nx, ny
real*8 a(0:nx-1,ny-1), xcoor(0:nx-1), ycoor(0:ny-1), func1
C call this function with an array a that has
C column major storage!
Cf2py intent(inout) a
Cf2py intent(in) xcoor
Cf2py intent(in) ycoor
Cf2py depend(nx, ny) a
|
| Python call:
def ext_gridloop1(self, f):
lx = size(self.xcoor); ly = size(self.ycoor)
a = asarray(a, order='Fortran')
ext_gridloop.gridloop1(a, self.xcoor, self.ycoor, f)
return a
|
| Only when a has Fortran (column major) storage, the Fortran function works on a itself |
| If we provide a plain NumPy array, it has C (row major) storage, and the wrapper sends a copy to the Fortran function and transparently transposes the result |
| Hence, F2PY is very user-friendly, at a cost of some extra memory |
| The array returned from F2PY has Fortran (column major) storage |
| intent(out) a is the right specification; a should not be an argument in the Python call |
| F2PY wrappers will work on copies, if needed, and hide problems with different storage scheme in Fortran and C/Python |
| Python call:
a = ext_gridloop.gridloop2(self.xcoor, self.ycoor, f) |
| Find problems with this code (comp is a Fortran function in the extension module pde):
x = arange(0, 1, 0.01)
b = myfunc1(x) # compute b array of size (n,n)
u = myfunc2(x) # compute u array of size (n,n)
c = myfunc3(x) # compute c array of size (n,n)
dt = 0.05
for i in range(n)
u = pde.comp(u, b, c, i*dt)
|
| It is convenient to specify the myfunc in Python |
| However, a callback to Python is costly, especially when done a large number of times (for every grid point) |
| Avoid such callbacks; vectorize callbacks |
| The Fortran routine should actually direct a back to Python (i.e., do nothing...) for a vectorized operation |
| Let's do this for illustration |
class Grid2Deff(Grid2D):
...
def ext_gridloop_vec(self, f):
"""Call extension, then do a vectorized callback to Python."""
lx = size(self.xcoor); ly = size(self.ycoor)
a = zeros((lx,ly))
a = ext_gridloop.gridloop_vec(a, self.xcoor, self.ycoor, f)
return a
def myfunc(x, y):
return sin(x*y) + 8*x
def myfuncf77(a, xcoor, ycoor, nx, ny):
"""Vectorized function to be called from extension module."""
x = xcoor[:,NewAxis]; y = ycoor[NewAxis,:]
a[:,:] = myfunc(x, y) # in-place modification of a
g = Grid2Deff(dx=0.2, dy=0.1)
a = g.ext_gridloop_vec(myfuncf77)
subroutine gridloop_vec(a, xcoor, ycoor, nx, ny, func1)
integer nx, ny
real*8 a(0:nx-1,ny-1), xcoor(0:nx-1), ycoor(0:ny-1)
Cf2py intent(in,out) a
Cf2py intent(in) xcoor
Cf2py intent(in) ycoor
external func1
C fill array a with values taken from a Python function,
C do that without loop and point-wise callback, do a
C vectorized callback instead:
call func1(a, xcoor, ycoor, nx, ny)
C could work further with array a here...
return
end
| What about this Python callback:
def myfuncf77(a, xcoor, ycoor, nx, ny):
"""Vectorized function to be called from extension module."""
x = xcoor[:,NewAxis]; y = ycoor[NewAxis,:]
a = myfunc(x, y)
|
| a now refers to a new NumPy array; no in-place modification of the input argument |
| Callbacks are expensive |
| Even vectorized callback functions degrades performace a bit |
| Alternative: implement ``callback'' in F77 |
| Flexibility from the Python side: use a string to switch between the ``callback'' (F77) functions
a = ext_gridloop.gridloop2_str(self.xcoor, self.ycoor, 'myfunc')F77 wrapper:
subroutine gridloop2_str(xcoor, ycoor, func_str)
character*(*) func_str
...
if (func_str .eq. 'myfunc') then
call gridloop2(a, xcoor, ycoor, nx, ny, myfunc)
else if (func_str .eq. 'f2') then
call gridloop2(a, xcoor, ycoor, nx, ny, f2)
...
|
| Idea: if callback formula is a string, we could embed it in a Fortran function and call Fortran instead of Python |
| F2PY has a module for ``inline'' Fortran code specification and building
source = """
real*8 function fcb(x, y)
real*8 x, y
fcb = %s
return
end
""" % fstr
import f2py2e
f2py_args = "--fcompiler='Gnu' --build-dir tmp2 etc..."
f2py2e.compile(source, modulename='callback',
extra_args=f2py_args, verbose=True,
source_fn='sourcecodefile.f')
import callback
<work with the new extension module>
|
| To glue F77 gridloop2 and the F77 callback function, we make a gridloop2 wrapper:
subroutine gridloop2_fcb(a, xcoor, ycoor, nx, ny)
integer nx, ny
real*8 a(0:nx-1,ny-1), xcoor(0:nx-1), ycoor(0:ny-1)
Cf2py intent(out) a
Cf2py depend(nx,ny) a
real*8 fcb
external fcb
call gridloop2(a, xcoor, ycoor, nx, ny, fcb)
return
end
|
| This wrapper and the callback function fc constitute the F77 source code, stored in source |
| The source calls gridloop2 so the module must be linked with the module containing gridloop2 (ext_gridloop.so) |
source = """
real*8 function fcb(x, y)
...
subroutine gridloop2_fcb(a, xcoor, ycoor, nx, ny)
...
""" % fstr
f2py_args = "--fcompiler='Gnu' --build-dir tmp2"\
" -DF2PY_REPORT_ON_ARRAY_COPY=1 "\
" ./ext_gridloop.so"
f2py2e.compile(source, modulename='callback',
extra_args=f2py_args, verbose=True,
source_fn='_cb.f')
import callback
a = callback.gridloop2_fcb(self.xcoor, self.ycoor)
def ext_gridloop2_compile(self, fstr):
if not isinstance(fstr, str):
<error>
# generate Fortran source for gridloop2:
import f2py2e
source = """
subroutine gridloop2(a, xcoor, ycoor, nx, ny)
...
do j = 0, ny-1
y = ycoor(j)
do i = 0, nx-1
x = xcoor(i)
a(i,j) = %s
...
""" % fstr # no callback, the expression is hardcoded
f2py2e.compile(source, modulename='ext_gridloop2', ...)
def ext_gridloop2_v2(self):
import ext_gridloop2
return ext_gridloop2.gridloop2(self.xcoor, self.ycoor)
| We can implement the callback function in Fortran, grab an F2PY-generated pointer to this function and feed that as the func1 argument such that Fortran calls Fortran and not Python |
| For a module m, the pointer to a function/subroutine f is reached as m.f._cpointer
def ext_gridloop2_fcb_ptr(self):
from callback import fcb
a = ext_gridloop.gridloop2(self.xcoor, self.ycoor,
fcb._cpointer)
return a
fcb is a Fortran implementation of the callback in an F2PY-generated
extension module callback
|
| Let us write the gridloop1 and gridloop2 functions in C |
| Typical C code:
void gridloop1(double** a, double* xcoor, double* ycoor,
int nx, int ny, Fxy func1)
{
int i, j;
for (i=0; i<nx; i++) {
for (j=0; j<ny; j++) {
a[i][j] = func1(xcoor[i], ycoor[j])
}
|
| Problem: NumPy arrays use single pointers to data |
| The above function represents a as a double pointer (common in C for two-dimensional arrays) |
| Use single-pointer arrays |
| Write C function signature with Fortran 77 syntax |
| Use F2PY to generate an interface file |
| Use F2PY to compile the interface file and the C code |
ypedef double (*Fxy)(double x, double y);
#define index(a, i, j) a[j*ny + i]
void gridloop2(double *a, double *xcoor, double *ycoor,
int nx, int ny, Fxy func1)
{
int i, j;
for (i=0; i<nx; i++) {
for (j=0; j<ny; j++) {
index(a, i, j) = func1(xcoor[i], ycoor[j]);
}
}
}
C file: signatures.f
subroutine gridloop2(a, xcoor, ycoor, nx, ny, func1)
Cf2py intent(c) gridloop2
integer nx, ny
Cf2py intent(c) nx,ny
real*8 a(0:nx-1,0:ny-1), xcoor(0:nx-1), ycoor(0:ny-1), func1
external func1
Cf2py intent(c, out) a
Cf2py intent(in) xcoor, ycoor
Cf2py depend(nx,ny) a
C sample call of callback function:
real*8 x, y, r
real*8 func1
Cf2py intent(c) x, y, r, func1
x = 1
y = 1.51981721222
r = func1(x, y)
end
| 3: Run
Unix/DOS> f2py -m ext_gridloop -h ext_gridloop.pyf signatures.f |
| 4: Run
Unix/DOS> f2py -c --fcompiler=Gnu --build-dir tmp1 \
-DF2PY_REPORT_ON_ARRAY_COPY=1 ext_gridloop.pyf gridloop.c
|
| See
src/py/mixed/Grid2D/C/f2pyfor all the involved files |
| SWIG needs some non-trivial tweaking to handle NumPy arrays (i.e., the use of SWIG is much more complicated for array arguments than running F2PY) |
| We shall write a complete extension module by hand |
| We will need documentation of the Python C API (from Python's electronic doc.) and the NumPy C API (from the NumPy book) |
| Source code files in
src/mixed/py/Grid2D/C/plain |
| Warning: manual writing of extension modules is very much more complicated than using F2PY on Fortran or C code! You need to know C quite well... |
| int nd: no of indices (dimensions) |
| int dimensions[nd]: length of each dimension |
| char *data: pointer to data |
| int strides[nd]: no of bytes between two successive data elements for a fixed index |
| Access element (i,j) by
a->data + i*a->strides[0] + j*a->strides[1] |
| Allocate a new array:
PyObject * PyArray_FromDims(int n_dimensions,
int dimensions[n_dimensions],
int type_num);
PyArrayObject *a; int dims[2];
dims[0] = 10; dims[1] = 21;
a = (PyArrayObject *) PyArray_FromDims(2, dims, PyArray_DOUBLE);
|
| Wrap an existing memory segment (with array data) in a NumPy array object:
PyObject * PyArray_FromDimsAndData(int n_dimensions,
int dimensions[n_dimensions],
int item_type,
char *data);
/* vec is a double* with 10*21 double entries */
PyArrayObject *a; int dims[2];
dims[0] = 10; dims[1] = 21;
a = (PyArrayObject *) PyArray_FromDimsAndData(2, dims,
PyArray_DOUBLE, (char *) vec);
Note: vec is a stream of numbers, now interpreted as a two-dimensional array, stored row by row
|
| Turn any relevant Python sequence type (list, type, array) into a NumPy array:
PyObject * PyArray_ContiguousFromObject(PyObject *object,
int item_type,
int min_dim,
int max_dim);
Use min_dim and max_dim as 0 to preserve the original dimensions of object
|
| Application: ensure that an object is a NumPy array,
/* a_ is a PyObject pointer, representing a sequence
(NumPy array or list or tuple) */
PyArrayObject a;
a = (PyArrayObject *) PyArray_ContiguousFromObject(a_,
PyArray_DOUBLE, 0, 0);
a list, tuple or NumPy array a is now a NumPy array
|
class Grid2Deff(Grid2D):
def __init__(self,
xmin=0, xmax=1, dx=0.5,
ymin=0, ymax=1, dy=0.5):
Grid2D.__init__(self, xmin, xmax, dx, ymin, ymax, dy)
def ext_gridloop1(self, f):
lx = size(self.xcoor); ly = size(self.ycoor)
a = zeros((lx,ly))
ext_gridloop.gridloop1(a, self.xcoor, self.ycoor, f)
return a
def ext_gridloop2(self, f):
a = ext_gridloop.gridloop2(self.xcoor, self.ycoor, f)
return a
| Transform PyObject argument tuple to NumPy arrays:
static PyObject *gridloop1(PyObject *self, PyObject *args)
{
PyArrayObject *a, *xcoor, *ycoor;
PyObject *func1, *arglist, *result;
int nx, ny, i, j;
double *a_ij, *x_i, *y_j;
/* arguments: a, xcoor, ycoor */
if (!PyArg_ParseTuple(args, "O!O!O!O:gridloop1",
&PyArray_Type, &a,
&PyArray_Type, &xcoor,
&PyArray_Type, &ycoor,
&func1)) {
return NULL; /* PyArg_ParseTuple has raised an exception */
}
|
if (a->nd != 2 || a->descr->type_num != PyArray_DOUBLE) {
PyErr_Format(PyExc_ValueError,
"a array is %d-dimensional or not of type float", a->nd);
return NULL;
}
nx = a->dimensions[0]; ny = a->dimensions[1];
if (xcoor->nd != 1 || xcoor->descr->type_num != PyArray_DOUBLE ||
xcoor->dimensions[0] != nx) {
PyErr_Format(PyExc_ValueError,
"xcoor array has wrong dimension (%d), type or length (%d)",
xcoor->nd,xcoor->dimensions[0]);
return NULL;
}
if (ycoor->nd != 1 || ycoor->descr->type_num != PyArray_DOUBLE ||
ycoor->dimensions[0] != ny) {
PyErr_Format(PyExc_ValueError,
"ycoor array has wrong dimension (%d), type or length (%d)",
ycoor->nd,ycoor->dimensions[0]);
return NULL;
}
if (!PyCallable_Check(func1)) {
PyErr_Format(PyExc_TypeError,
"func1 is not a callable function");
return NULL;
}
| Python functions can be called from C |
| Step 1: for each argument, convert C data to Python objects and collect these in a tuple
PyObject *arglist; double x, y;
/* double x,y -> tuple with two Python float objects: */
arglist = Py_BuildValue("(dd)", x, y);
|
| Step 2: call the Python function
PyObject *result; /* return value from Python function */ PyObject *func1; /* Python function object */ result = PyEval_CallObject(func1, arglist); |
| Step 3: convert result to C data
double r; /* result is a Python float object */ r = PyFloat_AS_DOUBLE(result); |
for (i = 0; i < nx; i++) {
for (j = 0; j < ny; j++) {
a_ij = (double *)(a->data+i*a->strides[0]+j*a->strides[1]);
x_i = (double *)(xcoor->data + i*xcoor->strides[0]);
y_j = (double *)(ycoor->data + j*ycoor->strides[0]);
/* call Python function pointed to by func1: */
arglist = Py_BuildValue("(dd)", *x_i, *y_j);
result = PyEval_CallObject(func1, arglist);
*a_ij = PyFloat_AS_DOUBLE(result);
}
}
return Py_BuildValue(""); /* return None: */
}
| There is a major problem with our loop:
arglist = Py_BuildValue("(dd)", *x_i, *y_j);
result = PyEval_CallObject(func1, arglist);
*a_ij = PyFloat_AS_DOUBLE(result);
|
| For each pass, arglist and result are dynamically allocated, but not destroyed |
| From the Python side, memory management is automatic |
| From the C side, we must do it ourself |
| Python applies reference counting |
| Each object has a number of references, one for each usage |
| The object is destroyed when there are no references |
| Increase the reference count:
Py_INCREF(myobj);(i.e., I need this object, it cannot be deleted elsewhere) |
| Decrease the reference count:
Py_DECREF(myobj);(i.e., I don't need this object, it can be deleted) |
for (i = 0; i < nx; i++) {
for (j = 0; j < ny; j++) {
a_ij = (double *)(a->data + i*a->strides[0] + j*a->strides[1]);
x_i = (double *)(xcoor->data + i*xcoor->strides[0]);
y_j = (double *)(ycoor->data + j*ycoor->strides[0]);
/* call Python function pointed to by func1: */
arglist = Py_BuildValue("(dd)", *x_i, *y_j);
result = PyEval_CallObject(func1, arglist);
Py_DECREF(arglist);
if (result == NULL) return NULL; /* exception in func1 */
*a_ij = PyFloat_AS_DOUBLE(result);
Py_DECREF(result);
}
}
| We should check that allocations work fine:
arglist = Py_BuildValue("(dd)", *x_i, *y_j);
if (arglist == NULL) { /* out of memory */
PyErr_Format(PyExc_MemoryError,
"out of memory for 2-tuple);
|
| The C code becomes quite comprehensive; much more testing than ``active'' statements |
static PyObject *gridloop2(PyObject *self, PyObject *args)
{
PyArrayObject *a, *xcoor, *ycoor;
int a_dims[2];
PyObject *func1, *arglist, *result;
int nx, ny, i, j;
double *a_ij, *x_i, *y_j;
/* arguments: xcoor, ycoor, func1 */
if (!PyArg_ParseTuple(args, "O!O!O:gridloop2",
&PyArray_Type, &xcoor,
&PyArray_Type, &ycoor,
&func1)) {
return NULL; /* PyArg_ParseTuple has raised an exception */
}
nx = xcoor->dimensions[0]; ny = ycoor->dimensions[0];
| NumPy array code in C can be simplified using macros |
| First, a smart macro wrapping an argument in quotes:
#define QUOTE(s) # s /* turn s into string "s" */ |
| Check the type of the array data:
#define TYPECHECK(a, tp) \
if (a->descr->type_num != tp) { \
PyErr_Format(PyExc_TypeError, \
"%s array is not of correct type (%d)", QUOTE(a), tp); \
return NULL; \
}
|
| PyErr_Format is a flexible way of raising exceptions in C (must return NULL afterwards!) |
| Check the length of a specified dimension:
#define DIMCHECK(a, dim, expected_length) \
if (a->dimensions[dim] != expected_length) { \
PyErr_Format(PyExc_ValueError, \
"%s array has wrong %d-dimension=%d (expected %d)", \
QUOTE(a),dim,a->dimensions[dim],expected_length); \
return NULL; \
}
|
| Check the dimensions of a NumPy array:
#define NDIMCHECK(a, expected_ndim) \
if (a->nd != expected_ndim) { \
PyErr_Format(PyExc_ValueError, \
"%s array is %d-dimensional, expected to be %d-dimensional",\
QUOTE(a), a->nd, expected_ndim); \
return NULL; \
}
|
| Application:
NDIMCHECK(xcoor, 1); TYPECHECK(xcoor, PyArray_DOUBLE);If xcoor is 2-dimensional, an exceptions is raised by NDIMCHECK: exceptions.ValueError xcoor array is 2-dimensional, but expected to be 1-dimensional |
| Macros can greatly simplify indexing:
#define IND1(a, i) *((double *)(a->data + i*a->strides[0])) #define IND2(a, i, j) \ *((double *)(a->data + i*a->strides[0] + j*a->strides[1])) |
| Application:
for (i = 0; i < nx; i++) {
for (j = 0; j < ny; j++) {
arglist = Py_BuildValue("(dd)", IND1(xcoor,i), IND1(ycoor,j));
result = PyEval_CallObject(func1, arglist);
Py_DECREF(arglist);
if (result == NULL) return NULL; /* exception in func1 */
IND2(a,i,j) = PyFloat_AS_DOUBLE(result);
Py_DECREF(result);
}
}
|
| Create return array:
a_dims[0] = nx; a_dims[1] = ny;
a = (PyArrayObject *) PyArray_FromDims(2, a_dims,
PyArray_DOUBLE);
if (a == NULL) {
printf("creating a failed, dims=(%d,%d)\n",
a_dims[0],a_dims[1]);
return NULL; /* PyArray_FromDims raises an exception */
}
|
| After the loop, return a:
return PyArray_Return(a); |
| The method table must always be present - it lists the functions that should be callable from Python:
static PyMethodDef ext_gridloop_methods[] = {
{"gridloop1", /* name of func when called from Python */
gridloop1, /* corresponding C function */
METH_VARARGS, /* ordinary (not keyword) arguments */
gridloop1_doc}, /* doc string for gridloop1 function */
{"gridloop2", /* name of func when called from Python */
gridloop2, /* corresponding C function */
METH_VARARGS, /* ordinary (not keyword) arguments */
gridloop2_doc}, /* doc string for gridloop1 function */
{NULL, NULL}
};
|
| METH_KEYWORDS (instead of METH_VARARGS) implies that the function takes 3 arguments (self, args, kw) |
static char gridloop1_doc[] = \ "gridloop1(a, xcoor, ycoor, pyfunc)"; static char gridloop2_doc[] = \ "a = gridloop2(xcoor, ycoor, pyfunc)"; static char module_doc[] = \ "module ext_gridloop:\n\ gridloop1(a, xcoor, ycoor, pyfunc)\n\ a = gridloop2(xcoor, ycoor, pyfunc)";
PyMODINIT_FUNC initext_gridloop()
{
/* Assign the name of the module and the name of the
method table and (optionally) a module doc string:
*/
Py_InitModule3("ext_gridloop", ext_gridloop_methods, module_doc);
/* without module doc string:
Py_InitModule ("ext_gridloop", ext_gridloop_methods); */
import_array(); /* required NumPy initialization */
}
root=`python -c 'import sys; print sys.prefix'`
ver=`python -c 'import sys; print sys.version[:3]'`
gcc -O3 -g -I$root/include/python$ver \
-I$scripting/src/C \
-c gridloop.c -o gridloop.o
gcc -shared -o ext_gridloop.so gridloop.o
# test the module:
python -c 'import ext_gridloop; print dir(ext_gridloop)'
| The script:
from distutils.core import setup, Extension
import os
name = 'ext_gridloop'
setup(name=name,
include_dirs=[os.path.join(os.environ['scripting'],
'src', 'C')],
ext_modules=[Extension(name, ['gridloop.c'])])
|
| Usage:
python setup.py build_ext python setup.py install --install-platlib=. # test module: python -c 'import ext_gridloop; print ext_gridloop.__doc__' |
| The usage is the same as in Fortran, when viewed from Python |
| No problems with storage formats and unintended copying of a in gridloop1, or optional arguments; here we have full control of all details |
| gridloop2 is the ``right'' way to do it |
| It is much simpler to use Fortran and F2PY |
| Things usually go wrong when you program... |
| Errors in C normally shows up as ``segmentation faults'' or ``bus error'' - no nice exception with traceback |
| Simple trick: run python under a debugger
unix> gdb `which python` (gdb) run test.py |
| When the script crashes, issue the gdb command where for a traceback (if the extension module is compiled with -g you can see the line number of the line that triggered the error) |
| You can only see the traceback, no breakpoints, prints etc., but a tool, PyDebug, allows you to do this |
| In src/py/mixed/Grid2D/C/plain/debugdemo there are some C files with errors |
| Try
./make_module_1.sh gridloop1This scripts runs ../../../Grid2Deff.py verify1which leads to a segmentation fault, implying that something is wrong in the C code (errors in the Python script shows up as exceptions with traceback) |
| Check that the extension module was compiled with debug mode on (usually the -g option to the C compiler) |
| Run python under a debugger:
unix> gdb `which python` GNU gdb 6.0-debian ... (gdb) run ../../../Grid2Deff.py verify1 Starting program: /usr/bin/python ../../../Grid2Deff.py verify1 ... Program received signal SIGSEGV, Segmentation fault. 0x40cdfab3 in gridloop1 (self=0x0, args=0x1) at gridloop1.c:20 20 if (!PyArg_ParseTuple(args, "O!O!O!O:gridloop1",This is the line where something goes wrong... |
(gdb) where #0 0x40cdfab3 in gridloop1 (self=0x0, args=0x1) at gridloop1.c:20 #1 0x080fde1a in PyCFunction_Call () #2 0x080ab824 in PyEval_CallObjectWithKeywords () #3 0x080a9bde in Py_MakePendingCalls () #4 0x080aa76c in PyEval_EvalCodeEx () #5 0x080ab8d9 in PyEval_CallObjectWithKeywords () #6 0x080ab71c in PyEval_CallObjectWithKeywords () #7 0x080a9bde in Py_MakePendingCalls () #8 0x080ab95d in PyEval_CallObjectWithKeywords () #9 0x080ab71c in PyEval_CallObjectWithKeywords () #10 0x080a9bde in Py_MakePendingCalls () #11 0x080aa76c in PyEval_EvalCodeEx () #12 0x080acf69 in PyEval_EvalCode () #13 0x080d90db in PyRun_FileExFlags () #14 0x080d9d1f in PyRun_String () #15 0x08100c20 in _IO_stdin_used () #16 0x401ee79c in ?? () #17 0x41096bdc in ?? ()
| What is wrong? |
| The import_array() call was removed, but the segmentation fault happended in the first call to a Python C function |
| Try
./make_module_1.sh gridloop2and experience that
python -c 'import ext_gridloop; print dir(ext_gridloop); \
print ext_gridloop.__doc__'
ends with an exception
Traceback (most recent call last): File "<string>", line 1, in ? SystemError: dynamic module not initialized properly |
| This signifies that the module misses initialization |
| Reason: no Py_InitModule3 call |
| Try
./make_module_1.sh gridloop3 |
| Most of the program seems to work, but a segmentation fault occurs (according to gdb):
(gdb) where (gdb) #0 0x40115d1e in mallopt () from /lib/libc.so.6 #1 0x40114d33 in malloc () from /lib/libc.so.6 #2 0x40449fb9 in PyArray_FromDimsAndDataAndDescr () from /usr/lib/python2.3/site-packages/Numeric/_numpy.so ... #42 0x080d90db in PyRun_FileExFlags () #43 0x080d9d1f in PyRun_String () #44 0x08100c20 in _IO_stdin_used () #45 0x401ee79c in ?? () #46 0x41096bdc in ?? () |
| Next step: print out information
for (i = 0; i <= nx; i++) {
for (j = 0; j <= ny; j++) {
arglist = Py_BuildValue("(dd)", IND1(xcoor,i), IND1(ycoor,j));
result = PyEval_CallObject(func1, arglist);
IND2(a,i,j) = PyFloat_AS_DOUBLE(result);
#ifdef DEBUG
printf("a[%d,%d]=func1(%g,%g)=%g\n",i,j,
IND1(xcoor,i),IND1(ycoor,j),IND2(a,i,j));
#endif
}
}
|
| Run
./make_module_1.sh gridloop3 -DDEBUG |
| Loop debug output:
a[2,0]=func1(1,0)=1 f1...x-y= 3.0 a[2,1]=func1(1,1)=3 f1...x-y= 1.0 a[2,2]=func1(1,7.15113e-312)=1 f1...x-y= 7.66040480538e-312 a[3,0]=func1(7.6604e-312,0)=7.6604e-312 f1...x-y= 2.0 a[3,1]=func1(7.6604e-312,1)=2 f1...x-y= 2.19626564365e-311 a[3,2]=func1(7.6604e-312,7.15113e-312)=2.19627e-311 |
| Ridiculous values (coordinates) and wrong indices reveal the problem: wrong upper loop limits |
| Try
./make_module_1.sh gridloop4and experience
python -c import ext_gridloop; print dir(ext_gridloop); \
print ext_gridloop.__doc__
Traceback (most recent call last):
File "<string>", line 1, in ?
ImportError: dynamic module does not define init function (initext_gridloop)
|
| Eventuall we got a precise error message (the initext_gridloop was not implemented) |
| Try
./make_module_1.sh gridloop5and experience
python -c import ext_gridloop; print dir(ext_gridloop); \
print ext_gridloop.__doc__
Traceback (most recent call last):
File "<string>", line 1, in ?
ImportError: ./ext_gridloop.so: undefined symbol: mydebug
|
| gridloop2 in gridloop5.c calls a function mydebug, but the function is not implemented (or linked) |
| Again, a precise ImportError helps detecting the problem |
| Check that import_array() is called if the NumPy C API is in use! |
| ImportError suggests wrong module initialization or missing required/user functions |
| You need experience to track down errors in the C code |
| An error in one place often shows up as an error in another place (especially indexing out of bounds or wrong memory handling) |
| Use a debugger (gdb) and print statements in the C code and the calling script |
| C++ modules are (almost) as error-prone as C modules |
| Implement the computational loop in a traditional C function |
| Aim: pretend that we have this loop already in a C library |
| Need to write a wrapper between this C function and Python |
| Could think of SWIG for generating the wrapper, but SWIG with NumPy arrays is a bit tricky - it is in fact simpler to write the wrapper by hand |
| C functions taking a two-dimensional array as argument will normally represent the array as a double pointer:
void gridloop1_C(double **a, double *xcoor, double *ycoor,
int nx, int ny, Fxy func1)
{
int i, j;
for (i=0; i<nx; i++) {
for (j=0; j<ny; j++) {
a[i][j] = func1(xcoor[i], ycoor[j]);
}
}
}
|
| Fxy is a function pointer:
typedef double (*Fxy)(double x, double y); |
| An existing C library would typically work with multi-dim. arrays and callback functions this way |
| How can we write wrapper code that sends NumPy array data to a C function as a double pointer? |
| How can we make callbacks to Python when the C function expects callbacks to standard C functions, represented as function pointers? |
| We need to cope with these problems to interface (numerical) C libraries! |
| The wrapper code must allocate extra data:
double **app; double *ap;
ap = (double *) a->data; /* a is a PyArrayObject* pointer */
app = (double **) malloc(nx*sizeof(double*));
for (i = 0; i < nx; i++) {
app[i] = &(ap[i*ny]); /* point row no. i in a->data */
}
/* clean up when app is no longer needed: */ free(app);
|
| gridloop1_C calls a function like
double somefunc(double x, double y)but our function is a Python object... |
| Trick: store the Python function in
PyObject* _pyfunc_ptr; /* global variable */and make a ``wrapper'' for the call:
double _pycall(double x, double y)
{
/* perform call to Python function object in _pyfunc_ptr */
}
|
| Complete function wrapper:
double _pycall(double x, double y)
{
PyObject *arglist, *result;
arglist = Py_BuildValue("(dd)", x, y);
result = PyEval_CallObject(_pyfunc_ptr, arglist);
return PyFloat_AS_DOUBLE(result);
}
|
| Initialize _pyfunc_ptr with the func1 argument supplied to the gridloop1 wrapper function
_pyfunc_ptr = func1; /* func1 is PyObject* pointer */ |
static PyObject *gridloop1(PyObject *self, PyObject *args)
{
PyArrayObject *a, *xcoor, *ycoor;
PyObject *func1, *arglist, *result;
int nx, ny, i;
double **app;
double *ap, *xp, *yp;
/* arguments: a, xcoor, ycoor, func1 */
/* parsing without checking the pointer types: */
if (!PyArg_ParseTuple(args, "OOOO", &a, &xcoor, &ycoor, &func1))
{ return NULL; }
NDIMCHECK(a, 2); TYPECHECK(a, PyArray_DOUBLE);
nx = a->dimensions[0]; ny = a->dimensions[1];
NDIMCHECK(xcoor, 1); DIMCHECK(xcoor, 0, nx);
TYPECHECK(xcoor, PyArray_DOUBLE);
NDIMCHECK(ycoor, 1); DIMCHECK(ycoor, 0, ny);
TYPECHECK(ycoor, PyArray_DOUBLE);
CALLABLECHECK(func1);
_pyfunc_ptr = func1; /* store func1 for use in _pycall */
/* allocate help array for creating a double pointer: */
app = (double **) malloc(nx*sizeof(double*));
ap = (double *) a->data;
for (i = 0; i < nx; i++) { app[i] = &(ap[i*ny]); }
xp = (double *) xcoor->data;
yp = (double *) ycoor->data;
gridloop1_C(app, xp, yp, nx, ny, _pycall);
free(app);
return Py_BuildValue(""); /* return None */
}
| Programming with NumPy arrays in C is much less convenient than programming with C++ array objects
SomeArrayClass a(10, 21); a(1,2) = 3; // indexing |
| Idea: wrap NumPy arrays in a C++ class |
| Goal: use this class wrapper to simplify the gridloop1 wrapper |
class NumPyArray_Float
{
private:
PyArrayObject* a;
public:
NumPyArray_Float () { a=NULL; }
NumPyArray_Float (int n1, int n2) { create(n1, n2); }
NumPyArray_Float (double* data, int n1, int n2)
{ wrap(data, n1, n2); }
NumPyArray_Float (PyArrayObject* array) { a = array; }
// redimension (reallocate) an array:
int create (int n1, int n2) {
int dim2[2]; dim2[0] = n1; dim2[1] = n2;
a = (PyArrayObject*) PyArray_FromDims(2, dim2, PyArray_DOUBLE);
if (a == NULL) { return 0; } else { return 1; } }
// wrap existing data in a NumPy array:
void wrap (double* data, int n1, int n2) {
int dim2[2]; dim2[0] = n1; dim2[1] = n2;
a = (PyArrayObject*) PyArray_FromDimsAndData(\
2, dim2, PyArray_DOUBLE, (char*) data);
}
// for consistency checks:
int checktype () const;
int checkdim (int expected_ndim) const;
int checksize (int expected_size1, int expected_size2=0,
int expected_size3=0) const;
// indexing functions (inline!):
double operator() (int i, int j) const
{ return *((double*) (a->data +
i*a->strides[0] + j*a->strides[1])); }
double& operator() (int i, int j)
{ return *((double*) (a->data +
i*a->strides[0] + j*a->strides[1])); }
// extract dimensions:
int dim() const { return a->nd; } // no of dimensions
int size1() const { return a->dimensions[0]; }
int size2() const { return a->dimensions[1]; }
int size3() const { return a->dimensions[2]; }
PyArrayObject* getPtr () { return a; }
};
static PyObject* gridloop2(PyObject* self, PyObject* args)
{
PyArrayObject *xcoor_, *ycoor_;
PyObject *func1, *arglist, *result;
/* arguments: xcoor, ycoor, func1 */
if (!PyArg_ParseTuple(args, "O!O!O:gridloop2",
&PyArray_Type, &xcoor_,
&PyArray_Type, &ycoor_,
&func1)) {
return NULL; /* PyArg_ParseTuple has raised an exception */
}
NumPyArray_Float xcoor (xcoor_); int nx = xcoor.size1();
if (!xcoor.checktype()) { return NULL; }
if (!xcoor.checkdim(1)) { return NULL; }
NumPyArray_Float ycoor (ycoor_); int ny = ycoor.size1();
// check ycoor dimensions, check that func1 is callable...
NumPyArray_Float a(nx, ny); // return array
int i,j;
for (i = 0; i < nx; i++) {
for (j = 0; j < ny; j++) {
arglist = Py_BuildValue("(dd)", xcoor(i), ycoor(j));
result = PyEval_CallObject(func1, arglist);
a(i,j) = PyFloat_AS_DOUBLE(result);
}
}
return PyArray_Return(a.getPtr());
| We have omitted a very important topic in Python-C programming: reference counting |
| Python has a garbage collection system based on reference counting |
| Each object counts the no of references to itself |
| When there are no more references, the object is automatically deallocated |
| Nice when used from Python, but in C we must program the reference counting manually
PyObject *obj; ... Py_XINCREF(obj); /* new reference created */ ... Py_DECREF(obj); /* a reference is destroyed */ |
| Thin C++ layer on top of the Python C API |
| Each Python type (number, tuple, list, ...) is represented as a C++ class |
| The resulting code is quite close to Python |
| SCXX objects performs reference counting automatically |
#include <PWONumber.h> // class for numbers
#include <PWOSequence.h> // class for tuples
#include <PWOMSequence.h> // class for lists (immutable sequences)
void test_scxx()
{
double a_ = 3.4;
PWONumber a = a_; PWONumber b = 7;
PWONumber c; c = a + b;
PWOList list; list.append(a).append(c).append(b);
PWOTuple tp(list);
for (int i=0; i<tp.len(); i++) {
std::cout << "tp["<<i<<"]="<<double(PWONumber(tp[i]))<<" ";
}
std::cout << std::endl;
PyObject* py_a = (PyObject*) a; // convert to Python C struct
}
void test_PythonAPI()
{
double a_ = 3.4;
PyObject* a = PyFloat_FromDouble(a_);
PyObject* b = PyFloat_FromDouble(7);
PyObject* c = PyNumber_Add(a, b);
PyObject* list = PyList_New(0);
PyList_Append(list, a);
PyList_Append(list, c);
PyList_Append(list, b);
PyObject* tp = PyList_AsTuple(list);
int tp_len = PySequence_Length(tp);
for (int i=0; i<tp_len; i++) {
PyObject* qp = PySequence_GetItem(tp, i);
double q = PyFloat_AS_DOUBLE(qp);
std::cout << "tp[" << i << "]=" << q << " ";
}
std::cout << std::endl;
}
Note: reference counting is omitted
static PyObject* gridloop1(PyObject* self, PyObject* args_)
{
/* arguments: a, xcoor, ycoor */
try {
PWOSequence args (args_);
NumPyArray_Float a ((PyArrayObject*) ((PyObject*) args[0]));
NumPyArray_Float xcoor ((PyArrayObject*) ((PyObject*) args[1]));
NumPyArray_Float ycoor ((PyArrayObject*) ((PyObject*) args[2]));
PWOCallable func1 (args[3]);
// work with a, xcoor, ycoor, and func1
...
return PWONone();
}
catch (PWException e) { return e; }
}
| NumPyArray_Float objects are checked using their member functions (checkdim, etc.) |
| SCXX objects also have some checks:
if (!func1.isCallable()) {
PyErr_Format(PyExc_TypeError,
"func1 is not a callable function");
return NULL;
}
|
int i,j;
for (i = 0; i < nx; i++) {
for (j = 0; j < ny; j++) {
PWOTuple arglist(Py_BuildValue("(dd)", xcoor(i), ycoor(j)));
PWONumber result(func1.call(arglist));
a(i,j) = double(result);
}
}
| Weave is an easy-to-use tool for inlining C++ snippets in Python codes |
| A quick demo shows its potential
class Grid2Deff:
...
def ext_gridloop1_weave(self, fstr):
"""Migrate loop to C++ with aid of Weave."""
from scipy import weave
# the callback function is now coded in C++
# (fstr must be valid C++ code):
extra_code = r"""
double cppcb(double x, double y) {
return %s;
}
""" % fstr
|
| The loops: inline C++ with Blitz++ array syntax:
code = r"""
int i,j;
for (i=0; i<nx; i++) {
for (j=0; j<ny; j++) {
a(i,j) = cppcb(xcoor(i), ycoor(j));
}
}
"""
|
| Compile and link the extra code extra_code
and the main code (loop) code:
nx = size(self.xcoor); ny = size(self.ycoor)
a = zeros((nx,ny))
xcoor = self.xcoor; ycoor = self.ycoor
err = weave.inline(code, ['a', 'nx', 'ny', 'xcoor', 'ycoor'],
type_converters=weave.converters.blitz,
support_code=extra_code, compiler='gcc')
return a
|
| Note that we pass the names of the Python objects we want to access in the C++ code |
| Weave is smart enough to avoid recompiling the code if it has not changed since last compilation |
| When interfacing many libraries, data must be grabbed from one code and fed into another |
| Example: NumPy array to/from some C++ data class |
| Idea: make filters, converting one data to another |
| Data objects are represented by pointers |
| SWIG can send pointers back and forth without needing to wrap the whole underlying data object |
| Let's illustrate with an example! |
| Say our favorite C++ array class is MyArray
template< typename T >
class MyArray
{
public:
T* A; // the data
int ndim; // no of dimensions (axis)
int size[MAXDIM]; // size/length of each dimension
int length; // total no of array entries
...
};
|
| We can work with this class from Python without needing to SWIG the class (!) |
| We make a filter class converting a NumPy array (pointer) to/from a MyArray object (pointer) |
class Convert_MyArray
{
public:
Convert_MyArray();
// borrow data:
PyObject* my2py (MyArray<double>& a);
MyArray<double>* py2my (PyObject* a);
// copy data:
PyObject* my2py_copy (MyArray<double>& a);
MyArray<double>* py2my_copy (PyObject* a);
// print array:
void dump(MyArray<double>& a);
// convert Py function to C/C++ function calling Py:
Fxy set_pyfunc (PyObject* f);
protected:
static PyObject* _pyfunc_ptr; // used in _pycall
static double _pycall (double x, double y);
};
PyObject* Convert_MyArray:: my2py(MyArray<double>& a)
{
PyArrayObject* array = (PyArrayObject*) \
PyArray_FromDimsAndData(a.ndim, a.size, PyArray_DOUBLE,
(char*) a.A);
if (array == NULL) {
return NULL; /* PyArray_FromDimsAndData raised exception */
}
return PyArray_Return(array);
}
PyObject* Convert_MyArray:: my2py_copy(MyArray<double>& a)
{
PyArrayObject* array = (PyArrayObject*) \
PyArray_FromDims(a.ndim, a.size, PyArray_DOUBLE);
if (array == NULL) {
return NULL; /* PyArray_FromDims raised exception */
}
double* ad = (double*) array->data;
for (int i = 0; i < a.length; i++) {
ad[i] = a.A[i];
}
return PyArray_Return(array);
}
| SWIG Convert_MyArray |
| Do not SWIG MyArray |
| Write numerical C++ code using MyArray (or use a library that already makes use of MyArray) |
| Convert pointers (data) explicitly in the Python code |
void gridloop1(MyArray<double>& a,
const MyArray<double>& xcoor,
const MyArray<double>& ycoor,
Fxy func1)
{
int nx = a.shape(1), ny = a.shape(2);
int i, j;
for (i = 0; i < nx; i++) {
for (j = 0; j < ny; j++) {
a(i,j) = func1(xcoor(i), ycoor(j));
}
}
}
| Instead of just calling
ext_gridloop.gridloop1(a, self.xcoor, self.ycoor, func) return aas before, we need some explicit conversions: # a is a NumPy array # self.c is the conversion module (class Convert_MyArray) a_p = self.c.py2my(a) x_p = self.c.py2my(self.xcoor) y_p = self.c.py2my(self.ycoor) f_p = self.c.set_pyfunc(func) ext_gridloop.gridloop1(a_p, x_p, y_p, f_p) return a # a_p and a share data! |
| In case we work with copied data, we must copy both ways:
a_p = self.c.py2my_copy(a) x_p = self.c.py2my_copy(self.xcoor) y_p = self.c.py2my_copy(self.ycoor) f_p = self.c.set_pyfunc(func) ext_gridloop.gridloop1(a_p, x_p, y_p, f_p) a = self.c.my2py_copy(a_p) return a |
| Note: final a is not the same a object as we started with |
| C++ code: convert.h/.cpp + gridloop.h/.cpp |
| SWIG interface file:
/* file: ext_gridloop.i */
%module ext_gridloop
%{
/* include C++ header files needed to compile the interface */
#include "convert.h"
#include "gridloop.h"
%}
%include "convert.h"
%include "gridloop.h"
|
| Important: call NumPy's import_array (here in Convert_MyArray constructor) |
| Run SWIG:
swig -python -c++ -I. ext_gridloop.i |
| Compile and link shared library module |
import os
from distutils.core import setup, Extension
name = 'ext_gridloop'
swig_cmd = 'swig -python -c++ -I. %s.i' % name
os.system(swig_cmd)
sources = ['gridloop.cpp','convert.cpp','ext_gridloop_wrap.cxx']
setup(name=name,
ext_modules=[Extension('_' + name, # SWIG requires _
sources=sources,
include_dirs=[os.curdir])])
swig -python -c++ -I. ext_gridloop.i
root=`python -c 'import sys; print sys.prefix'`
ver=`python -c 'import sys; print sys.version[:3]'`
g++ -I. -O3 -g -I$root/include/python$ver \
-c convert.cpp gridloop.cpp ext_gridloop_wrap.cxx
g++ -shared -o _ext_gridloop.so \
convert.o gridloop.o ext_gridloop_wrap.o
| Fortran subroutines, working on Fortran arrays, automatically wrapped by F2PY |
| Hand-written C extension module, working directly on NumPy array structs in C |
| Hand-written C wrapper to a C function, working on standard C arrays (incl. double pointer) |
| Hand-written C++ wrapper, working on a C++ class wrapper for NumPy arrays |
| As last point, but simplified wrapper utilizing SCXX |
| C++ functions based on MyArray, plus C++ filter for pointer conversion, wrapped by SWIG |
| What is the most convenient approach in this case? Fortran! |
| If we cannot use Fortran, which solution is attractive? C++, with classes allowing higher-level programming |
| To interface a large existing library, the filter idea and exchanging pointers is attractive (no need to SWIG the whole library) |
| When using the Python C API extensively, SCXX simplifies life |
| Which alternative is computationally most efficient? Fortran, but C/C++ is quite close -- no significant difference between all the C/C++ versions |
| Too bad: the (point-wise) callback to Python destroys the efficiency of the extension module! |
| Pure Python script w/NumPy is much more efficient... |
| Nevertheless: this is a pedagogical case teaching you how to migrate/interface numerical code |
language function func1 argument CPU time F77 gridloop1 F77 function with formula 1.0 C++ gridloop1 C++ function with formula 1.07 Python Grid2D.__call__ vectorized numpy myfunc 1.5 Python Grid2D.gridloop myfunc w/math.sin 120 Python Grid2D.gridloop myfunc w/numpy.sin 220 F77 gridloop1 myfunc w/math.sin 40 F77 gridloop1 myfunc w/numpy.sin 180 F77 gridloop2 myfunc w/math.sin 40 F77 gridloop_vec2 vectorized myfunc 2.7 F77 gridloop2_str F77 myfunc 1.1 F77 gridloop_noalloc (no alloc. as in pure C++) 1.0 C gridloop1 myfunc w/math.sin 38 C gridloop2 myfunc w/math.sin 38 C++ (with class NumPyArray) had the same numbers as C
| math.sin is much faster than numpy.sin for scalar expressions |
| Callbacks to Python are extremely expensive |
| Python+NumPy is 1.5 times slower than pure Fortran |
| C and C++ run equally fast |
| C++ w/MyArray was only 7\% slower than pure F77 |
| Hide work arrays (i.e., allocate in wrapper):
subroutine myroutine(a, b, m, n, w1, w2)
integer m, n
real*8 a(m), b(n), w1(3*n), w2(m)
Cf2py intent(in,hide) w1
Cf2py intent(in,hide) w2
Cf2py intent(in,out) a
Python interface:
a = myroutine(a, b) |
| Reuse work arrays in subsequent calls (cache):
subroutine myroutine(a, b, m, n, w1, w2)
integer m, n
real*8 a(m), b(n), w1(3*n), w2(m)
Cf2py intent(in,hide,cache) w1
Cf2py intent(in,hide,cache) w2
|
| Pyfort for Python-Fortran integration (does not handle F90/F95, not as simple as F2PY) |
| SIP: tool for wrapping C++ libraries |
| Boost.Python: tool for wrapping C++ libraries |
| CXX: C++ interface to Python (Boost is a replacement) |
| Note: SWIG can generate interfaces to most scripting languages (Perl, Ruby, Tcl, Java, Guile, Mzscheme, ...) |
| doc.html is the resource portal for the course; load it into a web browser from
http://www.ifi.uio.no/~inf3330/scripting/doc.htmland make a bookmark |
| doc.html has links to the electronic Python documentation, F2PY, SWIG, Numeric/numarray, and lots of things used in the course |
| The course book ``Python scripting for computational science'' (the PDF version is fine for searching) |
| Python in a Nutshell (by Martelli) |
| Programming Python 2nd ed. (by Lutz) |
| Python Essential Reference (Beazley) |
| Quick Python Book |
| Python Tutorial |
| Python Library Reference (start with the index!) |
| Python Reference Manual (less used) |
| Extending and Embedding the Python Interpreter |
| Quick references from doc.html |
| pydoc anymodule, pydoc anymodule.anyfunc |
| Variables are not declared |
| Variables hold references to objects of any type
a = 3 # reference to an int object containing 3
a = 3.0 # reference to a float object containing 3.0
a = '3.' # reference to a string object containing '3.'
a = ['1', 2] # reference to a list object containing
# a string '1' and an integer 2
|
| Test for a variable's type:
if isinstance(a, int): # int? if isinstance(a, (list, tuple)): # list or tuple? |
| Numbers: int, float, complex |
| Sequences: str (string), list, tuple, NumPy array |
| Mappings: dict (dictionary/hash) |
| User-defined type in terms of a class |
| Integer, floating-point number, complex number
a = 3 # int a = 3.0 # float a = 3 + 0.1j # complex (3, 0.1) |
| List:
a = [1, 3, 5, [9.0, 0]] # list of 3 ints and a list a[2] = 'some string' a[3][0] = 0 # a is now [1,3,5,[0,0]] b = a[0] # b refers first element in a |
| Tuple (``constant list''):
a = (1, 3, 5, [9.0, 0]) # tuple of 3 ints and a list a[3] = 5 # illegal! (tuples are const/final) |
| Traversing list/tuple:
for item in a: # traverse list/tuple a
# item becomes, 1, 3, 5, and [9.0,0]
|
| Making a dictionary:
a = {'key1': 'some value', 'key2': 4.1}
a['key1'] = 'another string value'
a['key2'] = [0, 1] # change value from float to string
a['another key'] = 1.1E+7 # add a new (key,value) pair
|
| Important: no natural sequence of (key,value) pairs! |
| Traversing dictionaries:
for key in some_dict:
# process key and corresponding value in some_dict[key]
|
| Strings apply different types of quotes
s = 'single quotes' s = "double quotes" s = """triple quotes are used for multi-line strings """ s = r'raw strings start with r and backslash \ is preserved' s = '\t\n' # tab + newline s = r'\t\n' # a string with four characters: \t\n |
| Some useful operations:
if sys.platform.startswith('win'): # Windows machine?
...
file = infile[:-3] + '.gif' # string slice of infile
answer = answer.lower() # lower case
answer = answer.replace(' ', '_')
words = line.split()
|
| Efficient arrays for numerical computing
from Numeric import * # classical, widely used module from numarray import * # alternative version |
|
a = array([[1, 4], [2, 1]], Float) # 2x2 array from list a = zeros((n,n), Float) # nxn array with 0 |
| Indexing and slicing:
for i in xrange(a.shape[0]):
for j in xrange(a.shape[1]):
a[i,j] = ...
b = a[0,:] # reference to 1st row
b = a[:,1] # reference to 2nd column
|
| Avoid loops and indexing, use operations that compute with whole arrays at once (in efficient C code) |
| Mutable types allow in-place modifications
>>> a = [1, 9, 3.2, 0] >>> a[2] = 0 >>> a [1, 9, 0, 0]Types: list, dictionary, NumPy arrays, class instances |
| Immutable types do not allow in-place modifications
>>> s = 'some string containing x' >>> s[-1] = 'y' # try to change last character - illegal! TypeError: object doesn't support item assignment >>> a = 5 >>> b = a # b is a reference to a (integer 5) >>> a = 9 # a becomes a new reference >>> b # b still refers to the integer 5 5Types: numbers, strings |
| Run arbitrary operating system command:
cmd = 'myprog -f -g 1.0 < input' failure, output = commands.getstatusoutput(cmd) |
| Use commands.getstatsoutput for running applications |
| Use Python (cross platform) functions for listing files, creating directories, traversing file trees, etc.
psfiles = glob.glob('*.ps') + glob.glob('*.eps')
allfiles = os.listdir(os.curdir)
os.mkdir('tmp1'); os.chdir('tmp1')
print os.getcwd() # current working dir.
def size(arg, dir, files):
for file in files:
fullpath = os.path.join(dir,file)
s = os.path.getsize(fullpath)
arg.append((fullpath, s)) # save name and size
name_and_size = []
os.path.walk(os.curdir, size, name_and_size)
|
| Open and read:
f = open(filename, 'r')
filestr = f.read() # reads the whole file into a string
lines = f.readlines() # reads the whole file into a list of lines
for line in f: # read line by line
<process line>
while True: # old style, more flexible reading
line = f.readline()
if not line: break
<process line>
f.close()
|
| Open and write:
f = open(filename, 'w') f.write(somestring) f.writelines(list_of_lines) print >> f, somestring |
| Two types of arguments: positional and keyword
def myfync(pos1, pos2, pos3, kw1=v1, kw2=v2):
...
3 positional arguments, 2 keyword arguments (keyword=default-value)
|
| Input data are arguments, output variables are returned as a tuple
def somefunc(i1, i2, i3, io1):
"""i1,i2,i3: input, io1: input and output"""
...
o1 = ...; o2 = ...; o3 = ...; io1 = ...
...
return o1, o2, o3, io1
|
| Find a string in a series of files:
grep.py 'Python' *.txt *.tmp |
| Python code:
def grep_file(string, filename):
res = {} # result: dict with key=line no. and value=line
f = open(filename, 'r')
line_no = 1
for line in f:
#if line.find(string) != -1:
if re.search(string, line):
res[line_no] = line
line_no += 1
|
| Let us put the previous function in a file grep.py |
| This file defines a module grep that we can import |
| Main program:
import sys, re, glob, grep
grep_res = {}
string = sys.argv[1]
for filespec in sys.argv[2:]:
for filename in glob.glob(filespec):
grep_res[filename] = grep.grep(string, filename)
# report:
for filename in grep_res:
for line_no in grep_res[filename]:
print '%-20s.%5d: %s' % (filename, line_no,
grep_res[filename][line_no])
|
Just write python in a terminal window to get an
interactive Python shell:
>>> 1269*1.24
1573.5599999999999
>>> import os; os.getcwd()
'/home/hpl/work/scripting/trunk/lectures'
>>> len(os.listdir('modules'))
60
| |
We recommend to use IPython as interactive shell
Unix/DOS> ipython In [1]: 1+1 Out[1]: 2 |
Scripts can be run from IPython:
In [1]:run scriptfile arg1 arg2 ...e.g., In [1]:run datatrans2.py .datatrans_infile tmp1 | |
| IPython is integrated with Python's pdb debugger | |
pdb can be automatically invoked when an exception occurs:
In [29]:%pdb on # invoke pdb automatically In [30]:run datatrans2.py infile tmp2 |
This happens when the infile name is wrong:
/home/work/scripting/src/py/intro/datatrans2.py
7 print "Usage:",sys.argv[0], "infile outfile"; sys.exit(1)
8
----> 9 ifile = open(infilename, 'r') # open file for reading
10 lines = ifile.readlines() # read file into list of lines
11 ifile.close()
IOError: [Errno 2] No such file or directory: 'infile'
> /home/work/scripting/src/py/intro/datatrans2.py(9)?()
-> ifile = open(infilename, 'r') # open file for reading
(Pdb) print infilename
infile
|
